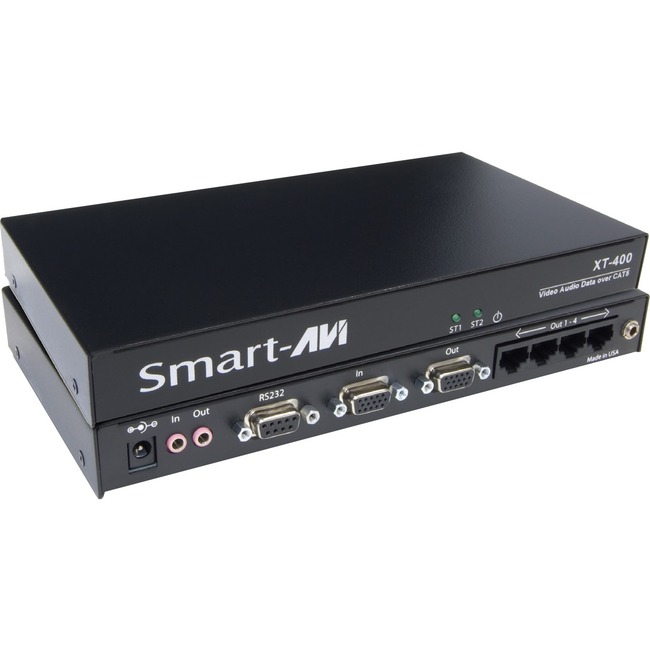

SmartAVI UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender, 4-Port Transmitter - 1 Input Device - 1000 ft Range - 4 x Network (RJ-45) - 1920 x 1200 - Twisted Pair - Category 8
1 Input Device - 1000 ft Range - 4 x Network (RJ-45) - 1920 x 1200 - Twisted Pair - Category 8
| Network (RJ-45) | Yes |
| Number of Input Devices Supported | 1 |
| Transmitter Weight (Approximate) | 12.80 oz |
| Brand Name | SmartAVI |
| Connectivity technology | Wired |
| Country of origin | United States |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | XT-TX400S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | The XT400 range of products allows the extension of a wide range of video and audio formats and RS232 up to 4 locations using Category 5 Unshielded Twisted Pair (UTP) cables. With RS232 communication support the XT400 allows users to send commands to single or multiple devices. This allows the user to change the volume channel or turn on/off the display panel remotely. - Supports Local Screen.
- Uses easy to install inexpensive CAT-5/5e/6/7/8.
- Each output reaches up to 1000 feet (300 m).
- Supports high resolution video up to 1920x1200
- HDTV Compatible (720p 1080i1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA Stereo Audio signals RS232 or IR from one source to 4 locations.
- Compatible with VGA XGA Sun MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply.
- RS-232c Communication support to single or multiple Displays.
- IR command to single or multiple Displays
- EDID Emulator.
|
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 4 |
| Package Contents | - UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender 4-Port Transmitter
- 1 x PS5VD2A Power Supply
- CCVGAMM06 Cable
|
| Product Model | XT-TX400 |
| Product Name | UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender 4-Port Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 8 |
| UPC Alternates | 638936943193 813280012072 813280024105 |
