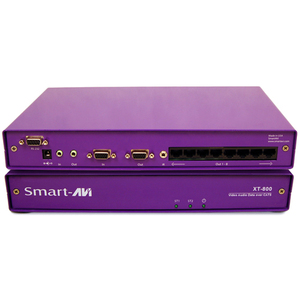

SmartAVI XT-TX800S Video Extender with Audio - 1 x 8 - VGA, XGA, SVGA, SXGA - 984.25ft
1 x 8 - VGA, XGA, SVGA, SXGA - 984.25ft
| Network (RJ-45) | Yes |
| Transmitter Weight (Approximate) | 3.50 lb |
| Brand Name | SmartAVI |
| Connectivity technology | Wired |
| Country of origin | United States |
| Input voltage | 5 V DC |
| Limited Warranty | 1 Year |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | XT-TX800S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | The XT800 range of products allows the extension of a wide range of video and audio formats and RS232 up to 8 locations using Category 5 Unshielded Twisted Pair (UTP) cables. - Features Supports Dual Screens.
- Uses easy to install inexpensive CAT-5/5e/6/7/8.
- Each output reaches up to 1000 feet (300 m).
- Supports high resolution video up to 1920x1200
- HDTV Compatible (720p 1080i1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA Stereo Audio signals RS232 or IR from one source to 8 locations.
- Compatible with VGA XGA Sun MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply.
- RS-232c Communication support to single or multiple Displays.
- IR command to single or multiple Displays
|
| Maximum Operating Distance | 984.25 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 8 |
| Number of VGA Outputs | 1 |
| Package Contents | - UXGA/Audio/IR/RS-232 point-to-multi-point CAT5 Extender
- PS5VD2A Power Supply
- CCVGAMM06 Cable
|
| Product Model | XT-TX800 |
| Product Name | UXGA/Audio/IR/RS-232 point-to-multi-point CAT5 Extender |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 8 |
| UPC Alternates | 011650965595 813280012089 813280024112 |
