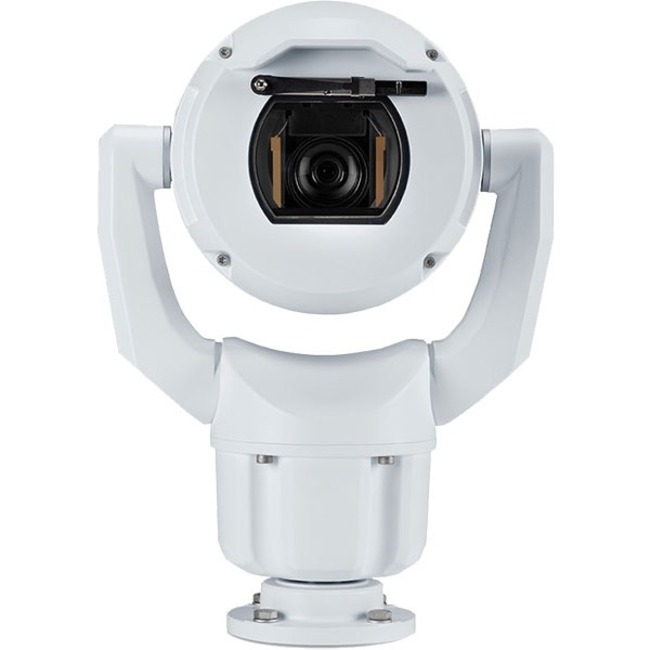

Bosch MIC IP ultra 8 Megapixel Outdoor Full HD Network Camera - Color, Monochrome - 1 Pack - Dome - H.265, H.264, MJPEG, JPEG - 3840 x 2160 - 9.30 mm- 111.60 mm Varifocal Lens - 12x Optical - Exmor R CMOS - Bracket Mount, Conduit Mount, Pole Mount, Wall Mount, Corner Mount - IK10 - IP68 - Corrosion Resistant, Impact Resistant, Weather Resistant, Dust Resistant, Vibration Resistant, Shock Resistant
H.265, H.264, MJPEG, JPEG - 3840 x 2160 - 9.30 mm- 111.60 mm Varifocal Lens - 12x Optical - Exmor R CMOS - Bracket Mount, Conduit Mount, Pole Mount, Wall Mount, Corner Mount - IK10 - IP68 - Corrosion Resistant, Impact Resistant, Weather Resistant, Dust Resistant, Vibration Resistant, Shock Resistant
| Field of View | 6.1° to 64.6° (6.1° to 64.5°) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP68 |
| Maximum Aperture | f/2.8 |
| Minimum Aperture | f/4.5 |
| Minimum Focal Length | 9.30 mm |
| Minimum Operating Temperature | -40°F (-40°C) |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Color Supported | Monochrome |
| Color Supported | Color |
| Connectivity technology | Wired |
| Depth | 8.3" |
| Durability | Weather Resistant |
| Durability | Impact Resistant |
| Durability | Dust Resistant |
| Durability | Corrosion Resistant |
| Durability | Shock Resistant |
| Durability | Vibration Resistant |
| Effective Camera Resolution | 8 Megapixel |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Built-in IR LED |
| Features | Enter/Exit Detector |
| Features | Rugged Design |
| Features | Day/Night |
| Features | Automatic White Balance |
| Features | Built-in Infrared Illuminator |
| Features | Privacy Masking |
| Features | Dynamic Noise Reduction |
| Features | Cross Line Detection |
| Features | Defog |
| Features | Auto Gain Control |
| Features | Wide Dynamic Range |
| Features | Removable IR Cut-off Filter |
| Features | Back Light Compensation (BLC) |
| Form factor | Dome |
| Height | 15.8" |
| Image Sensor Type | Exmor R CMOS |
| Input voltage | 30 V AC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | MIC-7504-Z12WR |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The first ruggedized PTZ camera with UHD ("4K")resolution MIC IP ultra 7100i offers unmatched imaging and reliability in extreme environments.The camera's ruggedized design meets customer expectations in demanding environments that exceedthe capabilities of conventional IP cameras. Even in installations subject to harsh shock/vibration conditions and/or extreme weather the camera provides high-quality video images.The camera is the ideal choice for: - Transportation: highways bridges/tunnels and ports
- Critical infrastructure: power generation/transmission refineries/pipelines and mining
- High-security: government facilities and data centers
- Mission-critical applications involving harsh environments that require high-resolution imaging
- Complex scenes with many details under any lighting condition
- Installations where downtime is undesired because ofhigh service costs
Functions Ruggedized design for extreme applications
The camera is designed to last in surveillance applications that are beyond the mechanical capabilities of conventional positioning systems. Theentire metal body is anodized and has been engineered to withstand high-impact low-frequency vibration. The camera models comply to IK10 rating forimpact resistance and to the IEC 60068 standards applicable to vibration and shock.
The camera has a closed-loop positioning system. The system allows the camera to maintain its positionunder continuous vibration or after an extreme shockevent even without homing or pre-position calibration.The camera benefits from Bosch domain knowledge inmaterial engineering and coatings. As a result the superior metallurgy and the finish of the cameraprovide unprecedented protection against corrosion.
The camera has been tested to and meets the ISO 12944:6 standard C5-M - very high (marine) on Aluminum Housing Components.
Defroster on the viewing window
The window defroster helps to decrease or to prevent a build-up of ice on the camera window. Even in very cold environments where other cameras suffer from frosted windows the MIC camera lets you see more and see better.
Robust design rated to an industry-leading IP68 Type 6P IK10
Subjected and certified to rigorous dust and immersion tests (IP68 Type 6P) and impact test (IK10) MIC cameras are perfectly suited for installation in even the most unforgiving environments. Anodized aluminum housing and robust powder coat paint give unequalled corrosion protection to each MIC camera. Reliable O-ring seals completely protect the internal components from the external environment meaning that there is no need to pressurize the camera. To guarantee unit integrity the factory tests each MIC camera for leaks before shipping. |
| Maximum Focal Length | 111.60 mm |
| Maximum frame rate | 30 fps |
| Maximum Operating Temperature | 149°F (65°C) |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | Corner Mount |
| Mount Type | Conduit Mount |
| Mount Type | Bracket Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Optical zoom | 12x |
| Package Contents | - 1 x PTZ 8MP 12x IP68 Enhanced White
- 1 x Spanner Tool
- 1 x Base Gasket
- 1 x RJ45 Coupler
- 1 x MAC Address Labels
- 1 x Quick Installation Guide
- 1 x Safety Instructions
|
| Packaged Quantity | 1 |
| Product color | White |
| Product Family | MIC IP ultra 7100i |
| Product Line | MIC IP ultra |
| Product Name | PTZ 8MP 12x IP68 Enhanced White |
| Product Series | 7100i |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/100000 Second |
| Storage Type | Memory Card |
| UPC Alternates | 800549896818 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | JPEG |
| Video Formats | H.265 |
| Weight (Approximate) | 19.18 lb |
| Width | 11.3" |
