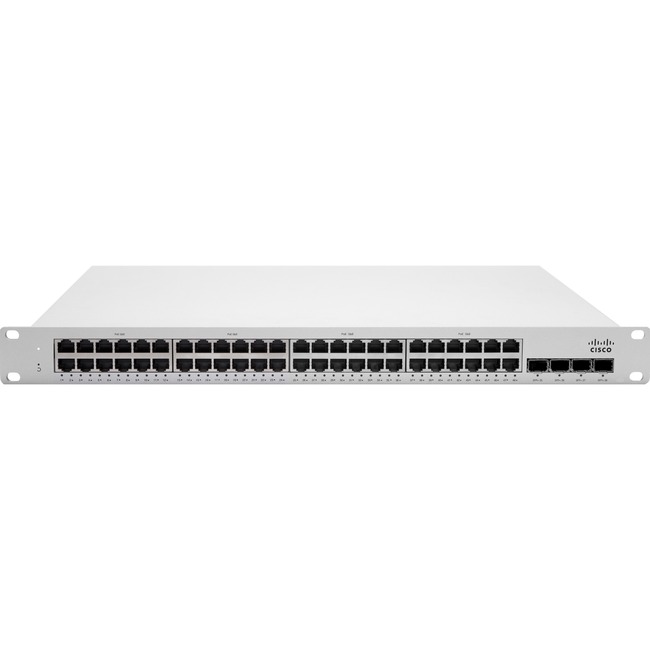

Meraki MS225-48LP Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop - Lifetime Limited Warranty
48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Power Supply - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 6 |
| Shared SFP Slot | No |
| Total Number of Network Ports | 48 |
| Brand Name | Meraki |
| Country of origin | Taiwan |
| Depth | 13.4" |
| Environmental Certification | RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Form factor | Desktop |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | MS225-48LP-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | CLOUD MANAGED STACKABLE ACCESS SWITCHES
The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model performance is guaranteed. This family also supports an optional rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant intuitive cloud interface rather than a cryptic command line. To bring up a Meraki switch just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. Stackable access switches with 10G SFP+ uplinks designed for the branch and campus
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small: - True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a singlepane of glass.
- Application layer visibility with automatic operating systemclient and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss downtime or configuration changes.
- Role-based administration and automatic scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered on demand from the Meraki cloud.
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Package Contents | - MS225-48LP Ethernet Switch
- 1 x Power Cord
- Mounting Screw Kit
- Rack Mount Hardware
|
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 2 x Stack |
| Power source | Power Supply |
| Product Model | MS225-48LP |
| Product Name | MS225-48LP Ethernet Switch |
| Product Series | MS |
| Product Type | Ethernet Switch |
| UPC Alternates | 098379214876 810979012849 |
| Weight (Approximate) | 9.63 lb |
| Width | 19.1" |
