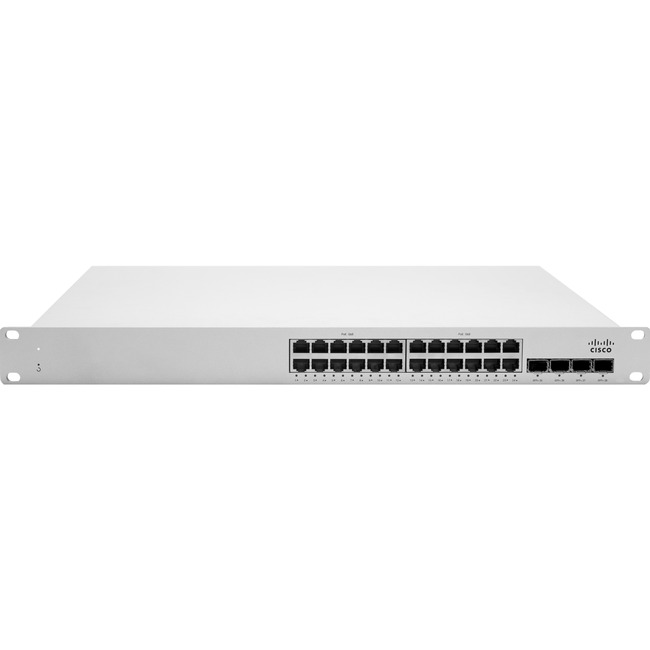

Meraki MS250-24P Ethernet Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop - Lifetime Limited Warranty
24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Desktop - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 6 |
| Shared SFP Slot | No |
| Total Number of Network Ports | 24 |
| Brand Name | Meraki |
| Country of origin | Taiwan |
| Depth | 16.4" |
| Environmental Certification | RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | MS250-24P-HW |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | CLOUD MANAGED STACKABLE ACCESS SWITCHES
The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model redundancy and performance are guaranteed. This family also supports redundant field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant intuitive cloud interface rather than a cryptic command line. To bring up a Meraki switch just plug it in; there's no need for complicatedconfiguration files or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a single pane of glass.
- Application layer visibility with automatic operating system client and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss downtime or configuration changes.
- Role-based administration and automatic scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered ondemand from the Meraki cloud.
|
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Package Contents | - MS250-24P Ethernet Switch
- 1 x Power Cord
- 1 x Power Supply
- Mounting Screw Kit
- Rack Mount Hardware
|
| Port/Expansion Slot Details | 2 x Stack |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Uplink |
| Power source | Power Supply |
| Product Model | MS250-24P |
| Product Name | MS250-24P Ethernet Switch |
| Product Series | MS |
| Product Type | Ethernet Switch |
| UPC Alternates | 098379214890 810979012863 |
| Weight (Approximate) | 10.59 lb |
| Width | 19.1" |
