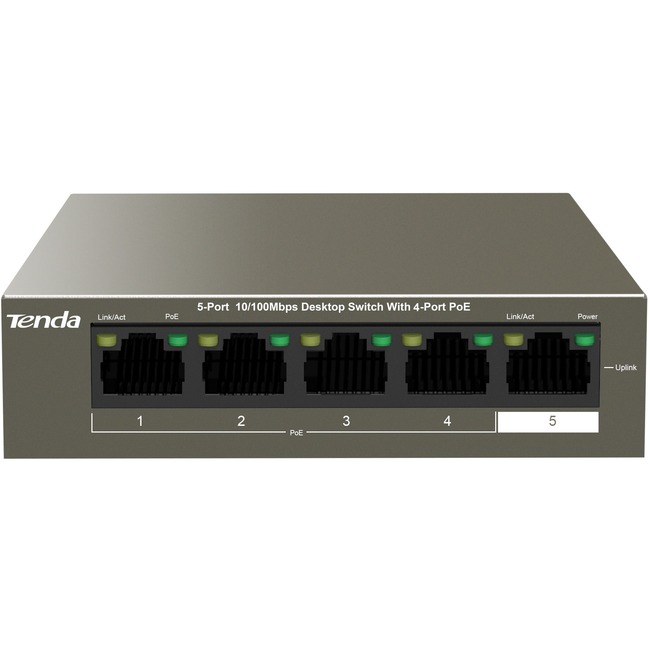

Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE

New
Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE - 5 Ports - Fast Ethernet - 2 Layer Supported - Twisted Pair - Desktop
0 Review(s) Item: TEF1105P-4-63W | By: Tenda |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
  • Cascade to other network devices through the uplink port to expand your local area network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • No need to deal with power supply issues, the switch comes with a separate AC adapter to power up the unit
  • The desktop installation makes it ideal for deployments outside the wiring closet
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Tenda 5-Port 10/100Mbps Desktop Switch With 4-Port PoE - 5 Ports - Fast Ethernet - 2 Layer Supported - Twisted Pair - Desktop
5 Ports - Fast Ethernet - 2 Layer Supported - Twisted Pair - Desktop

Product Specifications

Total Number of Network Ports5
Brand NameTenda
Country of originChina
Ethernet TechnologyFast Ethernet
Form factorDesktop
Height1"
Layer Supported2
ManageableNo
ManufacturerTenda Technology Inc
Manufacturer Part NumberTEF1105P-4-63W
Manufacturer Website Addresshttp://www.tendaus.com
Marketing Information

Born for WLAN And IP Surveillance

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

6KV Port Lightning Protection
Maximum PoE Output Power 58W
PoE power up to 30W for each PoE port

6KV lighting protection PoE switch is the real monitoring private switch

In the real project AP or IP cameras are often installed outdoor or the higher position which is also increases the risk of cameras and PoE switches impact by the lightning shock .The result is the individual equipment damaged or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have the professional lightning protection design -up 6 kv port and power supply thunder prevents with two levels of protection design respectively effectively restrain the power of lightning from cable which equivalent to give the entire network monitoring system with a security fence. The test standard is much higher than the national CE request. In thunderstorms weather it can also provide monitoring system or local area network stable reliable service protect the images transmission be normal.

Up to 250 meters long distance transmission

beyond hundred meters transfer limitDue to the complex monitoring environment when making cabling and networking it very often to encounter the problem of inadequate network transmission distance the distance of each camera terminal to the monitoring center is different some only a few meters some hundred metres while others are more than kilometers. Tenda TEF11 series PoE monitoring switches exclusive patent network extension technology use the common existing twisted pair can support 250 meters data transmission break the existing twisted pair hundreds meters transmission limit.

58W PoE power supply simplified wiring

Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W whereas each port offers a maximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Media Type SupportedTwisted Pair
Network Technology10/100Base-T
Port/Expansion Slot Details4 x Fast Ethernet Network
Port/Expansion Slot Details1 x Fast Ethernet Uplink
Power sourceAC Adapter
Product Name5-Port 10/100Mbps Desktop Switch With 4-Port PoE
Product TypeEthernet Switch
UPC Alternates885397271406
Uplink PortYes
Weight (Approximate)4.41 lb
Width3.9"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
