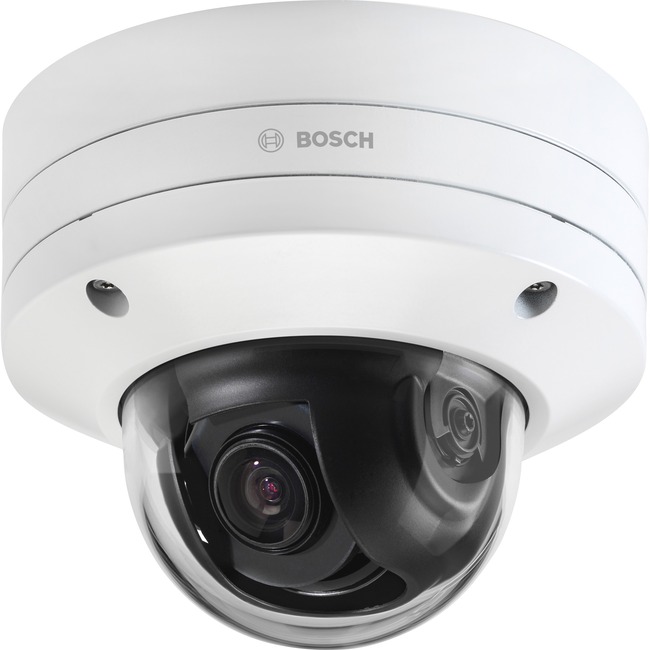

Bosch FLEXIDOME IP Starlight 2.1 Megapixel Full HD Network Camera - Color, Monochrome - 1 Pack - Dome - H.265, H.264, MJPEG, H.265/HEVC - 1920 x 1080 - 10 mm- 23 mm Varifocal Lens - 2.3x Optical - CMOS - In-ceiling, Surface Mount, Pendant Mount, Wall Mount, Pipe Mount, Ceiling Mount, Box Mount, Pole Mount, Parapet Mount - IK10, IK10+ - IP66, IP6K9K - Impact Resistant, Snow Resistant, Wind Resistance, Rain Resistant, Water Resistant, Dust Resistant
H.265, H.264, MJPEG, H.265/HEVC - 1920 x 1080 - 10 mm- 23 mm Varifocal Lens - 2.3x Optical - CMOS - In-ceiling, Surface Mount, Pendant Mount, Wall Mount, Pipe Mount, Ceiling Mount, Box Mount, Pole Mount, Parapet Mount - IK10, IK10+ - IP66, IP6K9K - Impact Resistant, Snow Resistant, Wind Resistance, Rain Resistant, Water Resistant, Dust Resistant
| Field of View | Wide: 32º x 18º (H x V) |
| Impact Protection Rating | IK10 |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP6K9K |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/2.6 |
| Minimum Aperture | f/1.6 |
| Minimum Focal Length | 10 mm |
| Minimum Operating Temperature | -58°F (-50°C) |
| Operating Humidity | 100% |
| Brand Name | Bosch |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Depth | 6.9" |
| Durability | Dust Resistant |
| Durability | Impact Resistant |
| Durability | Snow Resistant |
| Durability | Wind Resistance |
| Durability | Water Resistant |
| Durability | Rain Resistant |
| Effective Camera Resolution | 2.1 Megapixel |
| Environmental Certification | REACH |
| Environmental Certification | EU RoHS |
| Environmental Certification | EU WEEE |
| Environmentally Friendly | Yes |
| Features | SD Card Local Storage |
| Features | Enter/Exit Detector |
| Features | Auto Tracking |
| Features | Day/Night |
| Features | Face Detection |
| Features | Automatic White Balance |
| Features | Wide Dynamic Range |
| Features | Cross Line Detection |
| Features | Defog |
| Features | Back Light Compensation (BLC) |
| Features | Tamper Detection |
| Features | Region of Interest |
| Features | Digital Noise Reduction |
| Form factor | Dome |
| Height | 5.8" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Input voltage | 26 V DC |
| Input voltage | 24 V AC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDE-8512-RT |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The FLEXIDOME IP starlight 8000i - 2MP performance line camera offers starlight performance and High Dynamic Range with 1080p resolution to provide crisp and highly detailed images even in extreme low-light situations.
The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.
Functions
Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact as an installer you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time.
With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect to the camera remotely via the network using the Bosch Project Assistant app the camera's web interface or the Bosch Configuration Manager.
Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that makes sure no critical data is lost and video is captured with excellent detail.
Starlight performance
The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.
Scene modes
Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments. |
| Maximum Focal Length | 23 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Pipe Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Pendant Mount |
| Mount Type | Box Mount |
| Mount Type | Parapet Mount |
| Mount Type | Wall Mount |
| Mount Type | In-ceiling |
| Mount Type | Pole Mount |
| Mount Type | Surface Mount |
| Optical zoom | 2.3x |
| Package Contents | - 1 x Fixed dome 2MP HDR 10-23mm PTRZ IP66
- 1 x T-20 Security Torx Bit
- 1 x Quick Installation Guide
- 1 x Safety Information
- 2 x Rubber Grommet for the Ethernet Cable
- 1 x Network Patch Cable 50 cm
- 1 x 10-pin I/O Connector
- 1 x 2-pin Power Connector
- 1 x Cable Conduit for Side Entry
- 1 x Washer for Cable Conduit
- 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25)
- 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20)
- 3 x Identification Label
|
| Packaged Quantity | 1 |
| Power source type | DC |
| Power source type | AC |
| Product color | White |
| Product Family | FLEXIDOME IP Starlight 8000i |
| Product Line | FLEXIDOME IP Starlight |
| Product Name | Fixed dome 2MP HDR 10-23mm PTRZ IP66 |
| Product Series | 8000i |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/15000 Second |
| Storage Type | Memory Card |
| UPC Alternates | 800549624831 |
| Video Formats | H.265/HEVC |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Weight (Approximate) | 4.85 lb |
