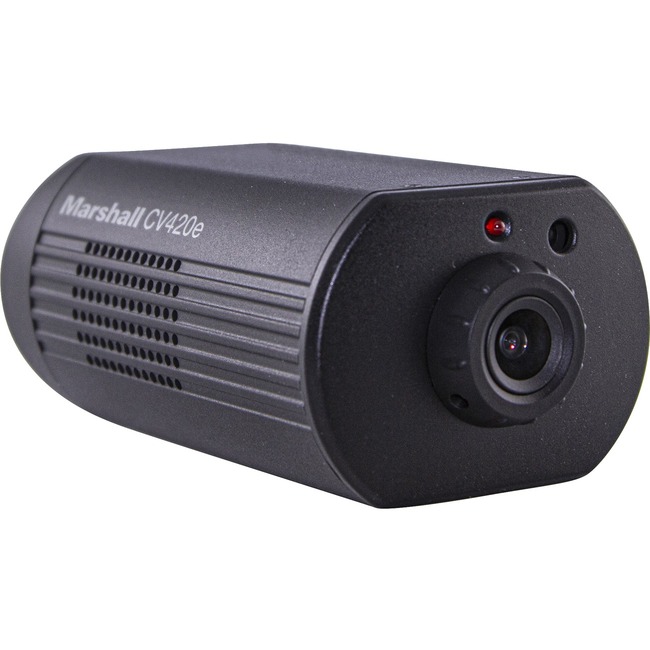

Marshall CV420E 9.2 Megapixel 4K Network Camera - Color - H.265 (HEVC), H.264, HEVC - 3840 x 2160 - 4.50 mm Fixed Lens - HDMI
H.265 (HEVC), H.264, HEVC - 3840 x 2160 - 4.50 mm Fixed Lens - HDMI
| Field of View | 100° |
| Minimum Operating Temperature | 32°F (0°C) |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 9.2 Megapixel |
| Features | ePTZ |
| Features | Wide Dynamic Range |
| HDMI | Yes |
| Input voltage | 12 V DC |
| Lens Type | Fixed |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV420E |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | Compact UHD Camera with large 1/1.8" 4K sensor with 9.2 megapixel and ePTZ maneuverable functionality built into a durable compact size. Featuring easy one-cable IP setup USB3.0 connectivity and HDMI simultaneous output. Ultra-wide 100-degree AOV with no curvature option wide open and ability to ePTZ an HD image within the 4K sensor. Crystal Clear 4K Images with wide AOV
Incorporating a 1/1.8" 4K sensor with over 9 million pixels delivers unparalleled clarity and performance even in challenging light conditions. Starting at a 100° angle-of-view CV420e delivers an ultra-wide perspective with no curvature. Flexible Workflow Options
The flexibility to stream content over IP (HEVC) with an HDMI simultaneous output or USB3.0 with a simultaneous HDMI output offers flexibility for media streaming and collaboration from one camera. Stream live to YouTube Livestream Facebook (Meta) or Twitch while capturing local HDMI content and workflow manipulation.
ePTZ with digital pan tilt and zoom
Utilizing a large Sony 1/1.8" 4K sensor opens optional ePTZ maneuverability of HD images within the 4K sensor space. Controllable remotely via VMS GUI or Visca over IP command from 3rd party control decks as well as UVC commands over USB. Hardware control from Marshall VS-PTC-IP controller via IP and locally by IR remote included in box.
Durable Flexible Powerful
The CV420e is built into a compact and durable body with rear I/O protection wings. Marshall CVM-5 monitor mount and desktop stand is included (free) as well as IR remote for local setup and control. Compact durable and powerful tool for a wide variety of streaming applications. |
| Maximum Focal Length | 4.50 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Video Resolution | 3840 x 2160 |
| Package Contents | - Compact 4K60 ePTZ Camera (HDMI IP & USB)
- IR remote
- Monitor Mount
- Desktop Stand
- Power Cord
- Power Adapter
- Warranty Card
|
| Power source type | PoE |
| Power source type | DC |
| Product Name | Compact 4K60 ePTZ Camera (HDMI IP & USB) |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Video Formats | H.264 |
| Video Formats | HEVC |
| Video Formats | H.265 (HEVC) |
