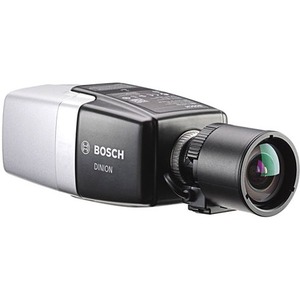

Bosch DINION IP 2 Megapixel Indoor/Outdoor Full HD Network Camera - Color, Monochrome - 1 Pack - Box - H.264, MJPEG, H.264 (MP) - 1920 x 1080 - CMOS - Tripod Mount, Wall Mount, Ceiling Mount, Pole Mount, Column Mount, Junction Box Mount, Bracket Mount
H.264, MJPEG, H.264 (MP) - 1920 x 1080 - CMOS - Tripod Mount, Wall Mount, Ceiling Mount, Pole Mount, Column Mount, Junction Box Mount, Bracket Mount
| Analog Video Signal Format | CVBS |
| Indoor/Outdoor | Indoor/Outdoor |
| Lens Included | No |
| Lens Mount Type | CS-Mount |
| Minimum Operating Temperature | -4°F (-20°C) |
| Operating Humidity | 93% |
| Brand Name | Bosch |
| Color Supported | Monochrome |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | WEEE |
| Environmental Certification | China RoHS |
| Environmentally Friendly | Yes |
| Features | Back Light Compensation (BLC) |
| Features | Automatic White Balance |
| Features | Tamper Detection |
| Features | Privacy Masking |
| Features | Enter/Exit Detector |
| Features | Day/Night |
| Features | Audio Detection |
| Features | Wide Dynamic Range |
| Features | Cross Line Detection |
| Features | ePTZ |
| Features | Region of Interest |
| Features | Automatic Defog |
| Features | Auto Gain Control |
| Features | SD Card Local Storage |
| Features | Dynamic Noise Reduction |
| Form factor | Box |
| Height | 2.6" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Length | 5.5" |
| Longest Shutter Speed | 1/30 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NBN-73023-BA |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | This camera provides clear images 24/7 - even at night or under low-light conditions.
The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.
Functions
Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that ensures no critical data is lost.
High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.
Content Based Imaging Technology
Content Based Imaging Technology (CBIT) is used to radically improve image quality in all lighting conditions and to identify areas for enhanced processing. The camera examines the scene using Intelligent Video Analytics and provides feedback to re-tune the image processing. This provides better detail in the areas that matter and better all-round performance. With IVA the Intelligent Auto Exposure technology for example allows you to view moving objects in bright and dark areas of a scene.
Intelligent Video Analytics
The built-in video analytics is both robust and intelligent. The Intelligence-at-the-Edge concept now delivers even more powerful features:
- Simple calibration
- False alarm reduction
- Extended range identification
- Crowd and queue management
- Density and flow counting
The mission critical video analytics reliably detects tracks and analyzes objects and alerts you when predefined alarms are triggered. A smart set of alarm rules together with object filters and tracking modes makes complex tasks easy. |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Mount Type | Pole Mount |
| Mount Type | Tripod Mount |
| Mount Type | Bracket Mount |
| Mount Type | Column Mount |
| Mount Type | Junction Box Mount |
| Package Contents | - 1 x DINION IP Starlight 7000 HD
- 1 x Sensor protection cap (mounted on camera)
- 1 x Power connector (2 Pins)
- 1 x Data/Alarm connector (12 Pins)
- 1 x Installation Guide
- 1 x Identification label sheet
- 1 x C/CS mount adapter ring for mounting a lens with a C-mount
|
| Packaged Quantity | 1 |
| Product color | Metallic Titanium |
| Product Family | DINION IP 7000 |
| Product Line | DINION IP |
| Product Name | DINION IP Starlight 7000 HD |
| Product Series | 7000 |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/15000 Second |
| Storage Type | Memory Card |
| UPC Alternates | 800549805704 |
| Video Formats | H.264 |
| Video Formats | H.264 (MP) |
| Video Formats | MJPEG |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| Weight (Approximate) | 1.85 lb |
| Width | 3.1" |
