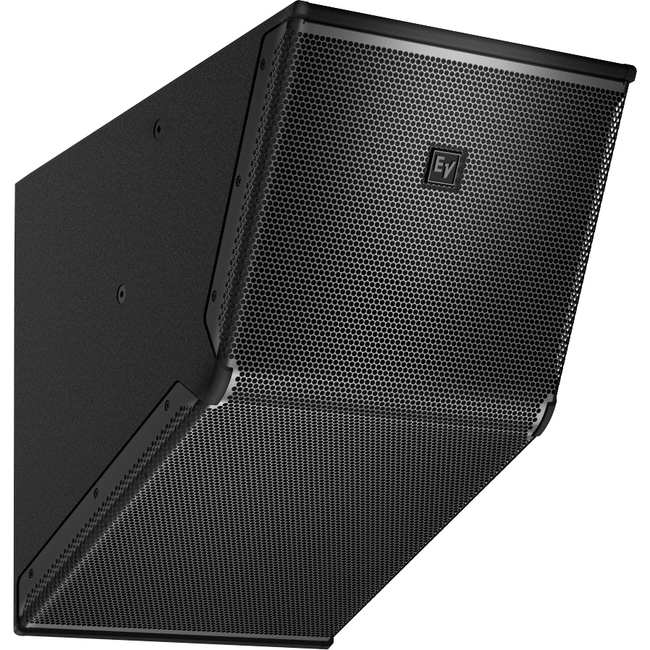

Electro-Voice EVC-1122-VI 2-way Indoor Speaker - 300 W RMS - Black

Name: Electro-Voice EVC-1122-VI 2-way Indoor Speaker - 300 W RMS - Black
Brand: The Bosch Group
SKU: 52161512
Price: 1156.41 USD

New

Electro-Voice EVC-1122-VI 2-way Indoor Speaker - 300 W RMS - Black - 1200 W (PMPO) Woofer Tweeter Midrange - 50 Hz to 25 kHz - 8 Ohm

0 Review(s) Item: EVC-1122-VIB | By: Electro-Voice | 0 In Stock

Sorry This Product is Currently not Available to Buy.

The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
Knock yourself out with 300 W RMS power
Listen to deep lows and euphoric highs with a frequency range of sound from 50 Hz-25 kHz
8 Ohm impedance extracts maximum power so you will get more output from your speakers

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Electro-Voice EVC-1122-VI 2-way Indoor Speaker - 300 W RMS - Black - 1200 W (PMPO) Woofer Tweeter Midrange - 50 Hz to 25 kHz - 8 Ohm
1200 W (PMPO) Woofer Tweeter Midrange - 50 Hz to 25 kHz - 8 Ohm

Product Specifications

Crossover Type	2-way
RMS Output Power	300 W
Speaker Installation	Indoor
Brand Name	Electro-Voice
Depth	25.51"
Height	20.8"
Impedance	8 Ohm
Manufacturer	The Bosch Group
Manufacturer Part Number	EVC-1122-VIB
Manufacturer Website Address	http://www.bosch.com
Marketing Information	12-inch two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area Power rating: 300 W Continuous (1200 W Peak) Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth vertical and horizontal directivity control and high efficiency are required in a compact cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF EVH and EVA). The EVC-1122/VI is a unique offering that is constructed in a variable intensity (VI) configuration. In a variable intensity loudspeaker the downward angle of the front-facing woofer and the asymmetrical wave guide work together to evenly cover a clearly defined rectangular audience area with a single loudspeaker system. The size of the coverage area is determined by the mounting height and the vertical mounting angle of the loudspeaker. The advantage of the VI approach is that there is reduced variation in sound level from the front to the back of the audience compared to typical point source solutions. In most situations the change is so gradual that the sound level will seem almost constant as you walk the coverage pattern. The EVC-1122/VI delivers clear articulate speech reproduction but in addition is an excellent choice for foreground music applications. It can be used as a stand-alone full-range system or as the mid-bass/high-frequency box in multi-way loudspeaker systems when used with the complementary EVC-1181S 18" subwoofer. The high frequency section of the EVC 1122/VI loudspeaker comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a compound waveguide that combines long-throw and short-throw behavior in a single acoustical device. This unique waveguide creates uniform pattern control and smooth linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art computer-aided optimization to provide low distortion high efficiency and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off-axis response and improved definition through the critical vocal range. The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of weather-resistant plywood and finished with EVCoat for enhanced durability. The EVC-1122/VI has been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket that can be mounted to the ceiling or the wall behind the loudspeaker. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts. For 70V/100V operation the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC) which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel as long as the total power draw does not exceed the amplifier capacity. The TK-150 is flat to ±1 dB from 35 Hz to 20 kHz so it is almost impossible to tell whether an EVC loudspeaker has a transformer installed or not.

Maximum Frequency Response	25 kHz
Minimum Frequency Response	50 Hz
PMPO Output Power	1200 W
Product color	Black
Product Model	EVC-1122-VI
Product Name	EVC-1122-VI 12" Speaker Vari-Intense Indoor
Product Series	EVC
Product Type	Speaker
Sensitivity	95 dB
Weight (Approximate)	48.06 lb
Width	16.2"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
