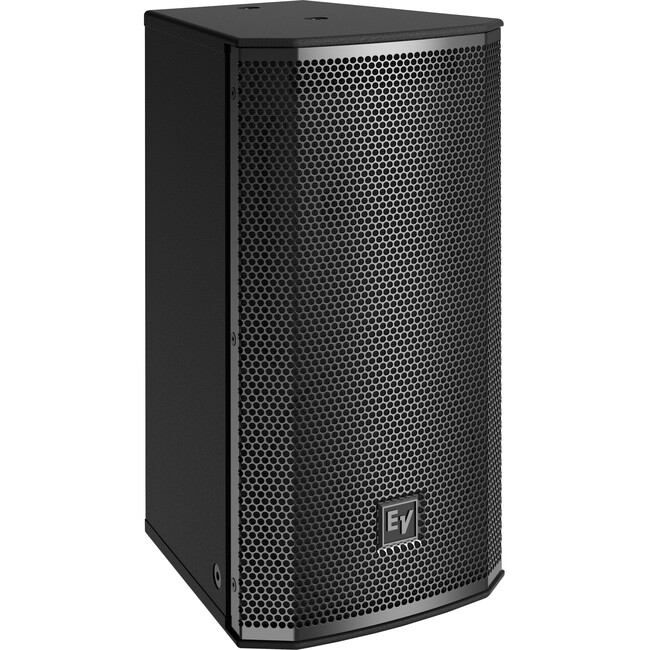

Electro-Voice EVC-1082-96PIB 2-way Wall Mountable Speaker - 200 W RMS - Black

New

Electro-Voice EVC-1082-96PIB 2-way Wall Mountable Speaker - 200 W RMS - Black - 800 W (PMPO) - 8" - 1.25" Titanium Tweeter - 75 Hz to 21 kHz - 8 Ohm

0 Review(s) Item: EVC-1082-96PIB | By: Electro-Voice | 0 In Stock

Sorry This Product is Currently not Available to Buy.

The 2-way Wall Mountable speakers provide the finest sound coverage
Experience body-shaking levels without any room-vibrating reverb or excessive heat output with 200 W RMS power
Hear every detail crisp and clear with a frequency response of 75 Hz-21 kHz
8 Ohm impedance extracts maximum power so you will get more output from your speakers

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Electro-Voice EVC-1082-96PIB 2-way Wall Mountable Speaker - 200 W RMS - Black - 800 W (PMPO) - 8" - 1.25" Titanium Tweeter - 75 Hz to 21 kHz - 8 Ohm
800 W (PMPO) - 8" - 1.25" Titanium Tweeter - 75 Hz to 21 kHz - 8 Ohm

Product Specifications

Crossover Type	2-way
RMS Output Power	200 W
Tweeter Driver Material	Titanium
Tweeter Driver Size	1.25"
Woofer Driver Size	8"
Brand Name	Electro-Voice
Depth	10.91"
Durability	Weather Resistant
Form factor	Wall Mountable
Height	19.4"
Impedance	8 Ohm
Manufacturer	The Bosch Group

Manufacturer Part Number	EVC-1082-96PIB
Manufacturer Website Address	http://www.bosch.com
Marketing Information	8-inch two-way loudspeaker with 90° x 60° constant directivity rotatable waveguide Power rating: 200 W Continuous (800 W Peak) Passive system: 91 dB 120 dB maximum Gland nut cover and stainless steel grille on PI versions Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end in 70V/100V lines EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth vertical and horizontal directivity control and high efficiency are required in a compact cost-effective package. EVC loudspeakers are voiced to complement other EVInnovation models (EVF EVH EVA). The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art computer aided optimization to provide low distortion high efficiency and maximum intelligibility at high sound pressure levels. The passive crossover implements a fourthorder Linkwitz Riley design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range. The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 rigging points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG. The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts. For 70V/100V operation the input panel has an internal landing pad for mounting EV's high-quality TK150 audio transformer. Adding a TK150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC) which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. This results in transformer and non-transformer EVC loudspeakers that sound virtually identical.
Maximum Frequency Response	21 kHz
Minimum Frequency Response	75 Hz
PMPO Output Power	800 W
Product color	Black
Product Name	EVC-1082-96 8" Speaker 90x60
Product Type	Speaker
Sensitivity	91 dB
Weight (Approximate)	24.69 lb
Width	9.8"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
