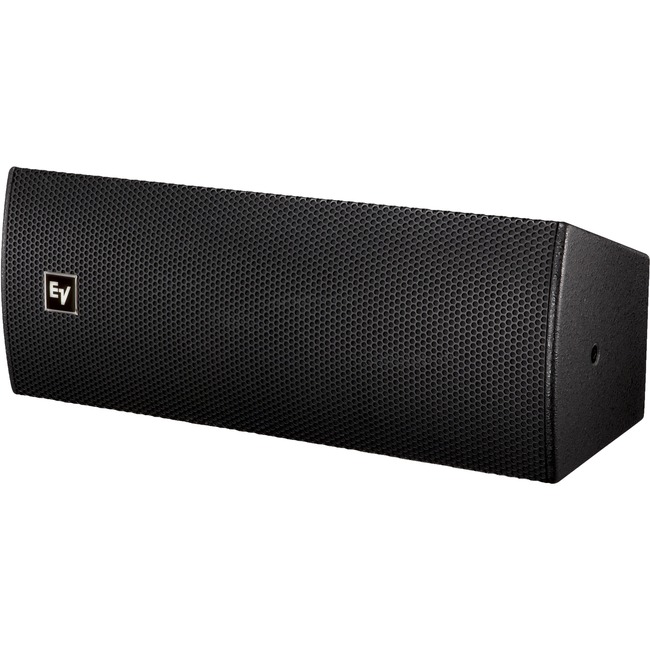

Electro-Voice EVU-2062/95 2-way Speaker - 300 W RMS - Black

New

Electro-Voice EVU-2062/95 2-way Speaker - 300 W RMS - Black - 1200 W (PMPO) - 6.50" - 1.30" - 100 Hz to 16 kHz - 8 Ohm

0 Review(s) Item: EVU-2062/95-BLK | By: Electro-Voice | 0 In Stock

Sorry This Product is Currently not Available to Buy.

1.3" (33 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
Dual 6.5" (165 mm) LF transducers
Advanced third-order crossover network with HF protection
Coverage pattern: 90° x 50° Constant DirectivityTM rotatable waveguide
94 dB sensitivity, 125 dB maximum SPL
System rating: 300 W continuous, 1200 W peak
Universal U-bracket included
70.7/100-V transformer accessory optional
NL4 cover plate accessory optional
(6) M8 threaded suspension points

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Electro-Voice EVU-2062/95 2-way Speaker - 300 W RMS - Black - 1200 W (PMPO) - 6.50" - 1.30" - 100 Hz to 16 kHz - 8 Ohm
1200 W (PMPO) - 6.50" - 1.30" - 100 Hz to 16 kHz - 8 Ohm

Product Specifications

Crossover Type	2-way
RMS Output Power	300 W
Tweeter Driver Size	1.30"
Woofer Driver Size	6.50"
Brand Name	Electro-Voice
Depth	8.15"
Height	8.2"
Impedance	8 Ohm
Manufacturer	The Bosch Group
Manufacturer Part Number	EVU-2062/95-BLK
Manufacturer Website Address	http://www.bosch.com
Marketing Information	The Electro-Voice EVU-2062/95 is a compact two-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall stage lip and under balcony applications. The EVU-2062/95 incorporates the ICT-1-8 a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-6.5-16 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range linear off-axis response and a protection circuit for long term reliability. The EVU series is constructed of 9-ply hardwood plywood enclosures with six integral M8 suspension points to support a wide variety of mounting positions. The EVU system is finished in textured paint available in either white or black. Each EVU system includes a universal U-bracket to facilitate mounting. The U-bracket provides full unobstructed rotation of the loudspeaker (330° unobstructed rotation if the transformer kit is installed). Additional mounting points are located on the rear of the enclosure for use with an Omnimount™ type bracket. An available 70.7/100-V transformer kit may be easily mounted over the input panel for use in distributed systems. All of these features give you the flexibility to address a large range of venues while quickly and precisely supporting customer requirements.

Maximum Frequency Response	16 kHz
Minimum Frequency Response	100 Hz
Package Contents	EVU-2062/95 Dual 6.5" Two-Way 90° x 50° Full-Range Loudspeaker System Universal U-Bracket
PMPO Output Power	1200 W
Product color	Black
Product Model	EVU-2062/95
Product Name	EVU-2062/95 Dual 6.5" Two-Way 90° x 50° Full-Range Loudspeaker System
Product Series	EVU
Product Type	Speaker
Sensitivity	94 dB
UPC Alternates	800549622752
Weight (Approximate)	24.91 lb
Width	21"
