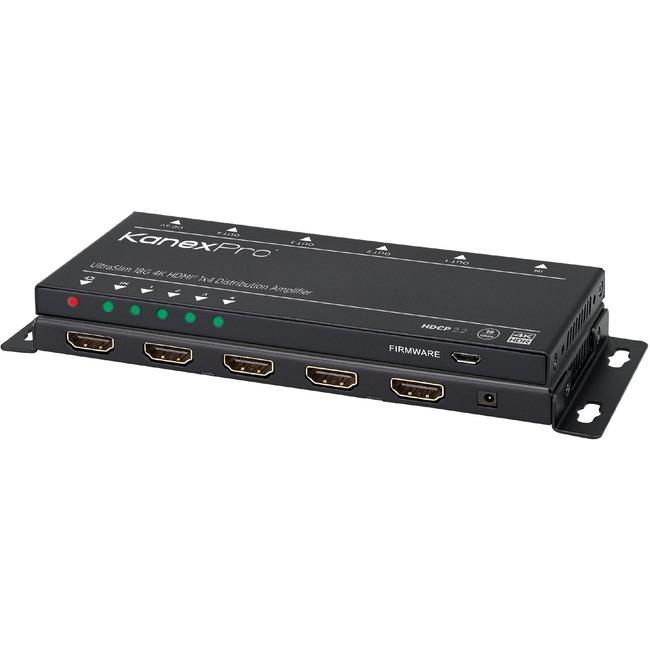

KanexPro UltraSlim 4K HDMI 1X4 Splitter w/ 4:4:4 Color Space & 18G
| $143.28 Retail $209.95 |
- UltraSlim 1x4 HDMI DA with 4K UHD resolutions
- Supports 1080p/60 & 4K/60Hz resolutions
- Supports YUC 4:4:4 color space w/ HDR 10
- Incredibly thin design - only 0.4" (11 mm) thick
- High-bandwidth 18 Gbps
- Transmits 4K up to 10m (32ft.)
- HDCP 2.2 compliant
- Auto-identifies input resolutions to match displays
- Supports EDID management
- Firmware update via micro USB
4096 x 2160 - 32.81 ft Maximum Operating Distance - 1 x HDMI In - 4 x HDMI Out - USB
Product Specifications
| Depth | 2.8" |
| Depth | 2.8" |
| Input voltage | 5 V DC |
| Input voltage | 5 V DC |
| Length | 6" |
| Length | 6" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | KanexPro |
| Manufacturer | KanexPro |
| Manufacturer Part Number | SP-1X4SL18G |
| Manufacturer Part Number | SP-1X4SL18G |
| Manufacturer Website Address | http://www.kanexpro.com |
| Manufacturer Website Address | http://www.kanexpro.com |
| Marketing Information | The KanexPro SP-1X4SL18G is an UltraSlim 1x4 DA designed to split one HDMI source to four 4K UHD displays supporting 4:4:4 YUV color space with HDR10. With the super bandwidth of 18 Gbps this 1x4 splitter can be used typically with displays and projectors supporting the latest HDMI 2.0 and HDCP 2.2 for ultimate reproduction of the video signal without any loss and attenuation. Applications: Ideal for high-res. signal distribution in restaurants corporate lobbies lecture halls house of worship centers and conference rooms where two or more displays are used in a set-up to distribute and mirror 4K video content. |
| Marketing Information | The KanexPro SP-1X4SL18G is an UltraSlim 1x4 DA designed to split one HDMI source to four 4K UHD displays supporting 4:4:4 YUV color space with HDR10. With the super bandwidth of 18 Gbps this 1x4 splitter can be used typically with displays and projectors supporting the latest HDMI 2.0 and HDCP 2.2 for ultimate reproduction of the video signal without any loss and attenuation. Applications: Ideal for high-res. signal distribution in restaurants corporate lobbies lecture halls house of worship centers and conference rooms where two or more displays are used in a set-up to distribute and mirror 4K video content. |
| Maximum Operating Distance | 32.81 ft |
| Maximum Operating Distance | 32.81 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Maximum Video Resolution | 4096 x 2160 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Number of HDMI Outputs | 4 |
| Package Contents |
|
| Package Contents |
|
| Product Line | UltraSlim |
| Product Line | UltraSlim |
| Product Name | UltraSlim 4K HDMI 1X4 Splitter w/ 4:4:4 Color Space & 18G |
| Product Name | UltraSlim 4K HDMI 1X4 Splitter w/ 4:4:4 Color Space & 18G |
| Product Type | Signal Splitter |
| Product Type | Signal Splitter |
| UPC Alternates | 813982021167 |
| UPC Alternates | 813982021167 |
| USB | Yes |
| USB | Yes |
| Weight (Approximate) | 4.80 oz |
| Weight (Approximate) | 4.80 oz |
| Width | 0.4" |
| Width | 0.4" |
