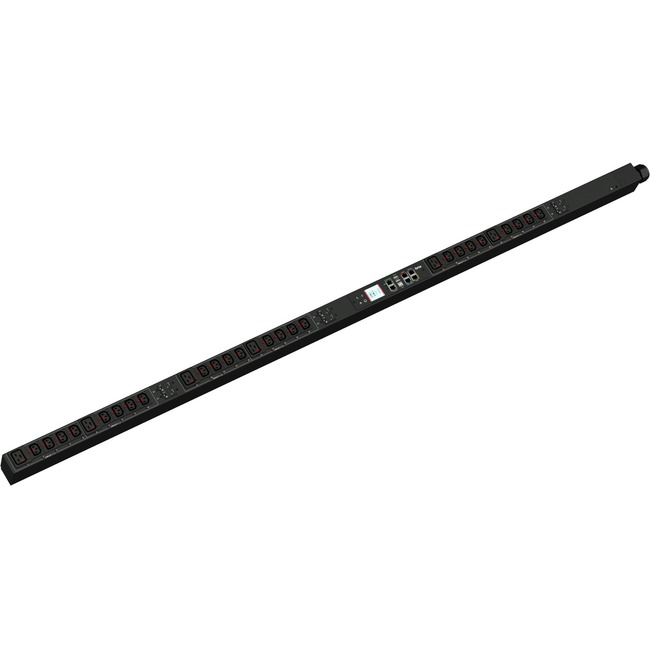

Raritan PX3-5668U-E2M5V2 30-Outlet PDU - Monitored - IEC 60309 3P+N+E 6h 32A (4P5W) - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 400 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
Monitored - IEC 60309 3P+N+E 6h 32A (4P5W) - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 400 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable
| Mounting Orientation | Vertical |
| PDU Type | Monitored |
| Phase | Three Phase |
| Power Rating (VA) | 22.20 kVA |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| Receptacle Detail | 24 x U-Lock IEC 60320 C13 |
| Brand Name | Raritan |
| Depth | 2.8" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Height | 70.1" |
| Input current | 32 A |
| Input voltage | 400 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5668U-E2M5V2 |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | Most Reliable
Rock Solid Uptime No Compromises.
From the ground up PX Intelligent PDUs are architected with components features and failsafes that ensure the most reliable infrastructure possible both now and for years to come. - Built-In Failover Power
- Advanced Alerting and Intelligence
- Circuit Breaker Trip Alarming
Built to Last
Prevent Outages Before They Occur
PX Intelligent PDUs help eliminate human error and can withstand the harshest environments. With monitoring features that spot problems in advance and physical design elements that adapt to the toughest conditions our solution protects your critical load under any circumstances. Easiest to Use
Simple to Deploy Simple to Use. Thoughtful design pays extraordinary dividends. Engineered with electricians infrastructure managers and IT experts in mind PX Intelligent PDUs offer a simple user experience for seamless physical deployment configuration commissioning monitoring and power delivery. |
| Mount Type | Rack-mountable |
| Output voltage | 230 V AC |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 32A (4P5W) |
| Product Name | PX3-5668U-E2M5V2 30-Outlet PDU |
| Product Series | PX |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Protection Type | Overcurrent Protection |
| Rack Height | 0U |
| Receptacle Type | U-Lock IEC 60320 C19 |
| Receptacle Type | U-Lock IEC 60320 C13 |
| Width | 2.1" |
