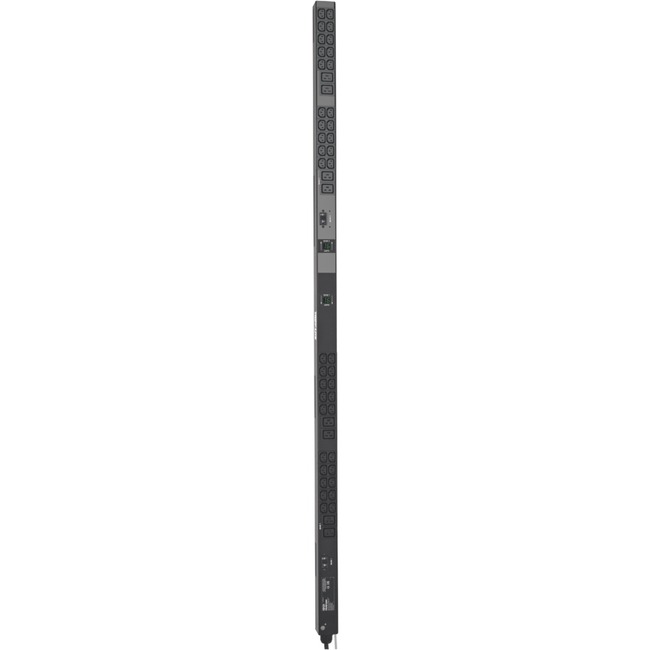

Tripp Lite PDU Metered Vertical 7.4kw 230V 8 C19 40 C13 IEC 309 32A 0U TAA
New
Tripp Lite PDU Metered Vertical 7.4kw 230V 8 C19 40 C13 IEC 309 32A 0U TAA - IEC 60309 2P+E - 40 x IEC 60320 C13, 8 x IEC 60320 C19
| $237.10 Retail $724.46 |
- Ideal for server rooms, network closets and data centers
- Dual load banks with 24 outlets each (4 C19 and 20 C13)
- Dedicated 20A circuit breakers protect output
- IEC-309 32A blue input plug with 10 ft. (3 m) cord
- Ready for immediate toolless 0U installation
You may be also interested
$241.61
$305.00
$594.48
$588.93
$869.00
$1,053.16
$1,119.95
$18.57
$21.95
$458.44
$2,844.65
$3,591.00
$137.72
$159.12
$2,591.78
$3,590.00
$956.31
$1,244.00
$1,123.91
$1,559.00
$57.23
$143.45
$1,128.37
$1,650.00
$176.37
$170.00
$113.38
$210.00
$128.58
$190.39
$324.43
$507.32
$347.94
$570.96
$452.32
$571.00
$32.57
$54.08
Tripp Lite PDU Metered Vertical 7.4kw 230V 8 C19 40 C13 IEC 309 32A 0U TAA - IEC 60309 2P+E - 40 x IEC 60320 C13, 8 x IEC 60320 C19
IEC 60309 2P+E - 40 x IEC 60320 C13, 8 x IEC 60320 C19
IEC 60309 2P+E - 40 x IEC 60320 C13, 8 x IEC 60320 C19
Product Specifications
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 7400 W |
| Receptacle Detail | 40 x IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C19 |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Height | 70" |
| Input current | 32 A |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMV32HV |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The 70-inch (178-centimeter) PDUMV32HV 32A 230V 7.4kW Single-Phase Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment including computers routers switches and servers. Outlets are arranged in two separate load banks each with 24 outlets (4 C19 and 20 C13) a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets breakers and ammeters are color-coded and labeled for easy identification. An ideal PDU for server rooms network closets and data centers the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-foot (3-meter) cord connects to your facility's compatible AC power source generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground. |
| Package Contents |
|
| Plug/Connector Type | IEC 60309 2P+E |
| Product Line | Metered |
| Product Name | Metered PDUMV32HV 48-Outlet PDU |
| Product Type | PDU |
| Protection Type | Overload Protection |
| Rack Height | 0U |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| TAA Compliant | Yes |
| UPC Alternates | 037332182814 |
| Weight (Approximate) | 12.35 lb |
| Width | 2.2" |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
