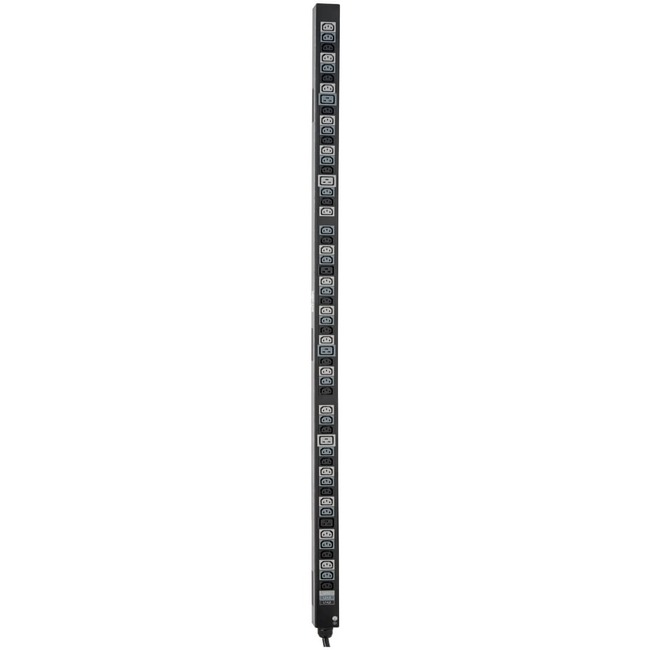

Tripp Lite PDU 3-Phase 208V 8.6/12.6kW 42 C13 12 C19 20A Vertical 0URM

Name: Tripp Lite PDU 3-Phase 208V 8.6/12.6kW 42 C13 12 C19 20A Vertical 0URM
Brand: Tripp Lite by Eaton
SKU: 2T2420
Price: 423.38 USD

New

Tripp Lite PDU 3-Phase 208V 8.6/12.6kW 42 C13 12 C19 20A Vertical 0URM - 54 Outlet Strip for 3-Phase ATS PDU

0 Review(s) Item: PDU3V20D354A | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Required for select Tripp Lite 3-phase ATS PDUs
Offers 42 C13 and 12 C19 single-phase outlets
Supports up to 8.6 or 12.6kW total output (depends on ATS PDU)
Simplifies load balancing with interlaced, color-coded outlets
Supports 0U toolless vertical rack mounting

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite PDU 8.6/12.6kW 3-Phase Vertical PDU Strip 208V Outlets (42 C13 & 12 C19) 0U Rack-Mount Accessory for Select ATS PDUs - 54 Outlet Strip for 3-Phase ATS PDU
54 Outlet Strip for 3-Phase ATS PDU

Product Specifications

Mounting Orientation	Vertical
Mounting Orientation	Vertical
Mounting Orientation	Vertical
Power Rating (Watt)	12.60 kW
Power Rating (Watt)	12.60 kW
Power Rating (Watt)	12.60 kW
Receptacle Detail	12 x IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C19
Receptacle Detail	12 x IEC 60320 C19
Receptacle Detail	42 x IEC 60320 C13
Receptacle Detail	42 x IEC 60320 C13
Receptacle Detail	42 x IEC 60320 C13
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Country of origin	China
Country of origin	China
Country of origin	China
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Height	70"
Height	70"
Height	70"
Input current	35 A
Input current	35 A
Input current	35 A
Input voltage	230 V AC
Input voltage	230 V AC
Input voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Input Voltage Range	200 V AC - 240 V AC
Input Voltage Range	200 V AC - 240 V AC
Limited Warranty	2 Year
Limited Warranty	2 Year
Limited Warranty	2 Year
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3V20D354A
Manufacturer Part Number	PDU3V20D354A
Manufacturer Part Number	PDU3V20D354A

Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	The PDU3V20D354A 8.6/12.6kW 3-Phase Vertical Power Distribution Unit(PDU) Outlet Strip is a required accessory option for Tripp Lite's PDU330AT6L21 PDU330AT6L15 PDU330AT6L2130 PDU330AT6L1530 PDU350AT6H50 and other 3-phase auto-transfer switch(ATS) PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms. When used with 208V ATS models with a 35A input rating(such as PDU350AT6H50) the PDU3V20D354A supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2 L2-L3 L3-L1). When used with 208V ATS models with a 24A input rating(such as PDU330AT6L21 PDU330AT6L2130 PDU330AT6L1530 or PDU330AT6L15) it supports up to 8.6kW total output with 13.9A maximum balanced load per phase combination output bank. The 42 C13 and 12 C19 single-phase outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2 L2-L3 L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. The 2.5-foot power cord with 8-position plug connects directly to the PDU's rear receptacle. The PDU3V20D354A's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
Marketing Information	The PDU3V20D354A 8.6/12.6kW 3-Phase Vertical Power Distribution Unit(PDU) Outlet Strip is a required accessory option for Tripp Lite's PDU330AT6L21 PDU330AT6L15 PDU330AT6L2130 PDU330AT6L1530 PDU350AT6H50 and other 3-phase auto-transfer switch(ATS) PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms. When used with 208V ATS models with a 35A input rating(such as PDU350AT6H50) the PDU3V20D354A supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2 L2-L3 L3-L1). When used with 208V ATS models with a 24A input rating(such as PDU330AT6L21 PDU330AT6L2130 PDU330AT6L1530 or PDU330AT6L15) it supports up to 8.6kW total output with 13.9A maximum balanced load per phase combination output bank. The 42 C13 and 12 C19 single-phase outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2 L2-L3 L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. The 2.5-foot power cord with 8-position plug connects directly to the PDU's rear receptacle. The PDU3V20D354A's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
Marketing Information	The PDU3V20D354A 8.6/12.6kW 3-Phase Vertical Power Distribution Unit(PDU) Outlet Strip is a required accessory option for Tripp Lite's PDU330AT6L21 PDU330AT6L15 PDU330AT6L2130 PDU330AT6L1530 PDU350AT6H50 and other 3-phase auto-transfer switch(ATS) PDUs that specify compatibility with this model. It's ideal for high-density equipment racks in data centers and server rooms. When used with 208V ATS models with a 35A input rating(such as PDU350AT6H50) the PDU3V20D354A supports up to 12.6kW total output with 20A maximum full balanced load per phase combination output bank(L1-L2 L2-L3 L3-L1). When used with 208V ATS models with a 24A input rating(such as PDU330AT6L21 PDU330AT6L2130 PDU330AT6L1530 or PDU330AT6L15) it supports up to 8.6kW total output with 13.9A maximum balanced load per phase combination output bank. The 42 C13 and 12 C19 single-phase outlets receive power from the connected ATS PDU. The outlets are interlaced to help you balance loads by spreading connections across the phase combinations(L1-L2 L2-L3 L3-L1) throughout the rack. Each outlet is numbered and color-coded to help you keep track of connected devices and which phase combination powers each. The 2.5-foot power cord with 8-position plug connects directly to the PDU's rear receptacle. The PDU3V20D354A's rugged all-metal housing mounts in compatible racks in seconds with no tools needed. Vertical 0U installation reduces cord clutter and improves airflow through the rack.
Mount Type	Rack-mountable
Mount Type	Rack-mountable
Mount Type	Rack-mountable
Output voltage	208 V AC
Output voltage	240 V AC
Output voltage	220 V AC
Output voltage	240 V AC
Output voltage	220 V AC
Output voltage	200 V AC
Output voltage	208 V AC
Output voltage	200 V AC
Output voltage	208 V AC
Output voltage	240 V AC
Output voltage	220 V AC
Output voltage	200 V AC
Product Name	PDU3V20D354A 54-Outlet PDU
Product Name	PDU3V20D354A 54-Outlet PDU
Product Name	PDU3V20D354A 54-Outlet PDU
Product Type	PDU
Product Type	PDU
Product Type	PDU
Rack Height	0U
Rack Height	0U
Rack Height	0U
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C19
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C13
UPC Alternates	037332190444
UPC Alternates	037332190444
UPC Alternates	037332190444
Weight (Approximate)	9.26 lb
Weight (Approximate)	9.26 lb
Weight (Approximate)	9.26 lb
Width	2.2"
Width	2.2"
Width	2.2"
