TRENDnet Industrial Gigabit PoE+ Extender, TI-E100, Single Port PoE, Power Over Ethernet, Supports PoE (15.4W) and PoE+ (30W), Extends 100m, Cascade 2 Units for Distance Up to 300m (984 ft.), IP30 - Industrial Gigabit PoE+ Extender
Industrial Gigabit PoE+ Extender
| Maximum Extended Range | 984.25 ft |
| Maximum Extended Range | 984.25 ft |
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| Additional Information | Standards - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface - 1 x Gigabit PoE+ in port
- 1 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
Data Transfer Rate - Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
Performance - Data RAM Buffer: 128KB
- MAC Address Table: 2K
- Jumbo Frame: 9KB
Special Features - Extends a PoE/PoE+ network connection an additional 100 meters
- Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
- Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
- ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE - Power input: 15.4W/30W/60W
- Power output: 15.4W/30W
- Max. consumption: 3.5W (no PoE)
Housing - IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- Contact 6kV Air 8kV ESD protection
- 2kV surge protection
Operating Temperature - - 40° - 75° C (-40° - 167° F)
Operating Humidity |
| Additional Information | Standards - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface - 1 x Gigabit PoE+ in port
- 1 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
Data Transfer Rate - Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
Performance - Data RAM Buffer: 128KB
- MAC Address Table: 2K
- Jumbo Frame: 9KB
Special Features - Extends a PoE/PoE+ network connection an additional 100 meters
- Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
- Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
- ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE - Power input: 15.4W/30W/60W
- Power output: 15.4W/30W
- Max. consumption: 3.5W (no PoE)
Housing - IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- Contact 6kV Air 8kV ESD protection
- 2kV surge protection
Operating Temperature - - 40° - 75° C (-40° - 167° F)
Operating Humidity |
| Certifications & Standards | - CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
|
| Certifications & Standards | - CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
|
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 1.3" |
| Depth | 1.3" |
| Height | 4.1" |
| Height | 4.1" |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | TRENDnet |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-E100 |
| Manufacturer Part Number | TI-E100 |
| Manufacturer Part Number | TIE100 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
- NDAA / TAA compliant (U.S. and Canada only)

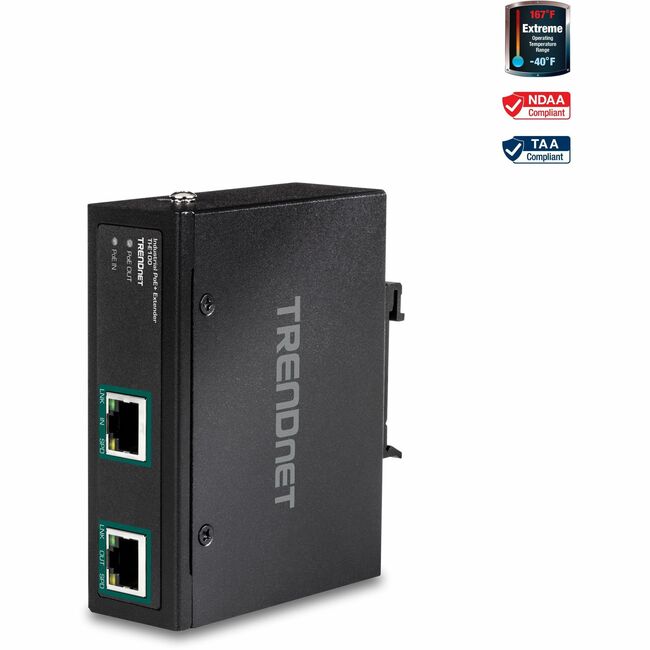

TRENDnet's Industrial Gigabit PoE+ Extender model TI-E100 takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Package Contents TI-E100 Quick Installation Guide DIN-Rail and wall mount kit More from the Manufacturer |
| Marketing Information | - Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
TRENDnet's Industrial Gigabit PoE+ Extender model TI-E100 takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Package Contents
? TI-E100
? Quick Installation Guide
? DIN-Rail and wall mount kit More from the Manufacturer |
| Marketing Information | - Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
TRENDnet's Industrial Gigabit PoE+ Extender model TI-E100 takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Package Contents
? TI-E100
? Quick Installation Guide
? DIN-Rail and wall mount kit More from the Manufacturer |
| Marketing Information | - Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
TRENDnet's Industrial Gigabit PoE+ Extender model TI-E100 takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Package Contents TI-E100 Quick Installation Guide DIN-Rail and wall mount kit More from the Manufacturer |
| Marketing Information | - Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet's Industrial Gigabit PoE+ Extender model TI-E100 takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
Package Contents
? TI-E100
? Quick Installation Guide
? DIN-Rail and wall mount kit More from the Manufacturer |
| Maximum Data Transfer Rate | 250 MB/s |
| Maximum Data Transfer Rate | 250 MB/s |
| Number of Network (RJ-45) Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents | - Industrial Gigabit PoE+ Extender
- Quick Installation Guide
- DIN-Rail And Wall Mount Kit
|
| Package Contents | - Industrial Gigabit PoE+ Extender
- Quick Installation Guide
- DIN-Rail And Wall Mount Kit
|
| Product Condition | New |
| Product Condition | New |
| Product Model | TI-E100 |
| Product Name | Industrial Gigabit PoE+ Extender |
| Product Name | Industrial Gigabit PoE+ Extender |
| Product Type | Network Extender |
| Product Type | Network Extender |
| UPC Alternates | 710931161809 |
| UPC Alternates | 710931161809 |
| Width | 3.1" |
| Width | 3.1" |
