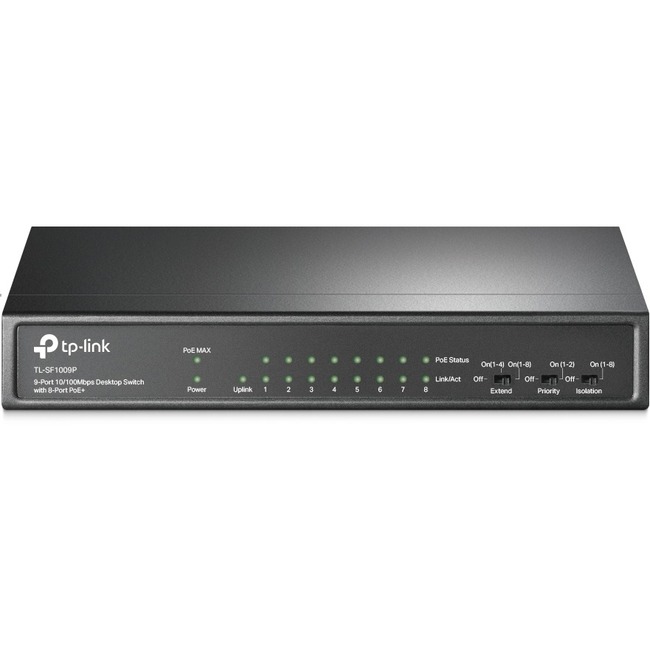

TP-Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - Limited Lifetime Protection
| $52.34 Retail $52.99 |
- Power Over Ethernet: 8× PoE+(802.3at/af) ports providing up to 30W per port, total PoE budget 65W.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Extend Mode: Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be downgraded to 10 Mbps).
- Priority Mode: Support Priority mode for ports 1-2, guarantee high quality of video or voice data transmission.
- Isolation Mode: Support Isolation Mode to isolate broadcast storm, improve Lan security and data transmission.
- Limited Lifetime Warranty: Industry leading limited lifetime warranty and free 24/7 technical support.
Sturdy Metal w/Shielded Ports - Extend Mode - Priority Mode - Isolation Mode
Product Specifications
| PoE Budget | 65 W |
| Product Material | Metal |
| Total Number of Network Ports | 9 |
| Brand Name | TP-Link |
| Country of origin | China |
| Depth | 3.9" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Form factor | Desktop |
| Height | 1.1" |
| Layer Supported | 2 |
| Limited Warranty | 2 Year |
| Manageable | No |
| Manufacturer | TP-LINK Technologies Co. Ltd |
| Manufacturer Part Number | TL-SF1009P |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Marketing Information | Professional 9-Port Unmanaged Switch with 8 PoE+ Ports TL-SF1009P Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications such as surveillance for offices dormitories and small businesses. It is fully compatible with IP cameras access points IP phones computers printers and more. Plug and Play No Configuration Required Ideal for IP Surveillance-Up to 250 m Transmissions With extend mode the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas. Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on. One-Click Traffic Separation for Ports 1-8 With one click Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm improving LAN security and data transmission. When total power consumption exceeds 65 W the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests TL-SF1009P delivers switching performance you can depend on. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100Base-T |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3at |
| Package Contents |
|
| Port/Expansion Slot Details | 8 x Fast Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x Fast Ethernet Network |
| Power consumption | 3.60 W |
| Power source | Power Adapter |
| Product Name | 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ |
| Product Type | Ethernet Switch |
| UPC Alternates | 845973099909 |
| Width | 6.7" |
