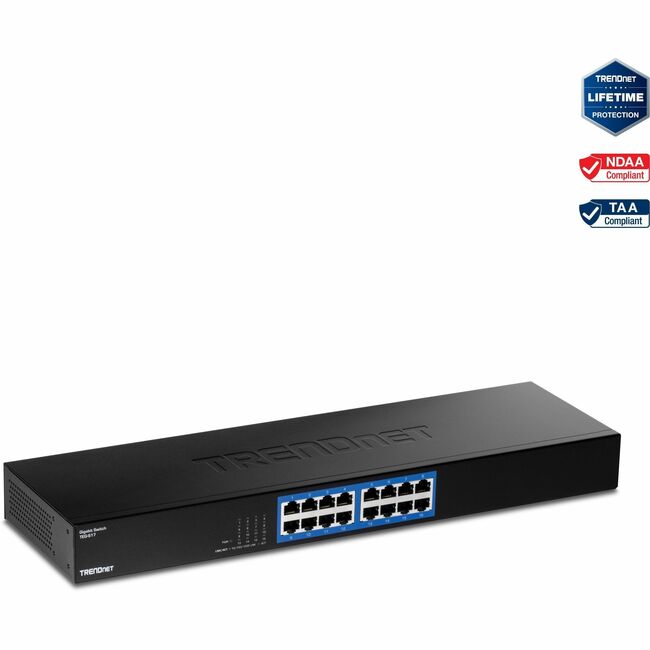

TRENDnet 16-Port Gigabit Switch, TEG-S17, 16 x Gigabit RJ-45 Ports, 32Gbps Switching Capacity, Fanless Design, Metal Enclosure, Internal Power Supply, Lifetime Protection, Black - 16 Ports - Gigabit Ethernet - 1000Base-X - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Rack-mountable
16 Ports - Gigabit Ethernet - 1000Base-X - 2 Layer Supported - Power Supply - 9.19 W Power Consumption - Twisted Pair - 1U High - Rack-mountable
| Compatible Rack Unit | 1U |
| Network (RJ-45) | Yes |
| Product Material | Metal |
| Total Number of Network Ports | 16 |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 4.3" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 2 |
| Length | 6.3" |
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S17 |
| Manufacturer Website Address | http://www.trendnet.com |
| Marketing Information | - DEVICE INTERFACE: 16 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 16-port gigabit switch has a 32Gbps switching capacity with a forwarding rate of 23.8Mpps (64- byte packet size)
- RACKMOUNT DESIGN: Sturdy metal housing with rackmount brackets included for greater installation flexibility and well suited for 19" 1U rack installation
- FANLESS DESIGN: The network swich fanless design lowers energy consumption and eliminates operating noise.
- INTERNAL POWER SUPPLY: 100 - 240V AC 50/60 Hz 1A; Max. Consumption: 9.19W
The 16-Port Gigabit Switch model TEG-S17 provides high-bandwidth performance ease of use and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity. Gigabit Speeds Gigabit ports provide high-speed network connections to 16 devices and a 32Gbps switching capacity allows data traffic to flow smoothly reducing traffic bottlenecks. Rackmount Design With a sturdy metal housing and included rackmount brackets this switch is well-suited for 19" 1U rack installations. Fanless Fanless design lowers energy consumption and reduces distracting operating noise. Plug and Play Simply power up the switch and plug in connected devices Ports 16 x Gigabit Ethernet ports
Switching Capacity 32Gbps switching capacity Rackmount Design With a sturdy metal housing and included rackmount brackets this switch is well-suited for 19" 1U rack installations Jumbo Frame Sends larger packets or Jumbo Frames (up to 9KB) for increased performance Fanless Fanless design lowers energy consumption and eliminates operating noise LED Indicators LEDs convey power link and activity Internal Power Supply 100~240VAC 50/60Hz internal universal switching power supply |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-X |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Power consumption | 9.19 W |
| Power source | Power Supply |
| Product Name | 16-Port Gigabit Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 710931140835 |
| Weight (Approximate) | 14.60 oz |
| Width | 1" |
