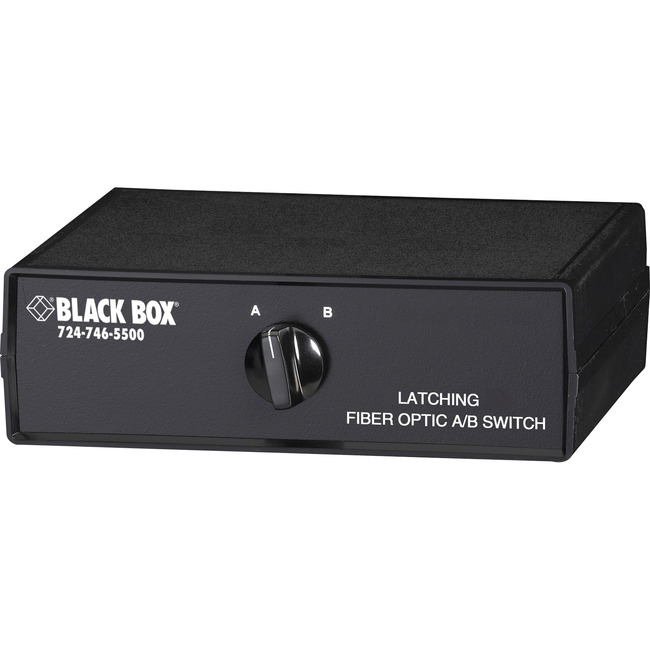

Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors

Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors

New
Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors - - Manual - TAA Compliant
0 Review(s) Item: SW1036A | By: Black Box |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • No optical-to-electrical conversion between fiber connections. Instead, the switch uses an internal mirror to optically move data between ports-technology that's trusted and time tested!
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors - - Manual - TAA Compliant
- Manual - TAA Compliant

Product Specifications

Switching TypeManual
Additional Information
  • Compatibility : 9-/125-micron single-mode fiber
  • Crosstalk : -45 dB (typical) per FOTP-42
  • MTBF : 100000 hours or 1000000 cycles
  • Optical Loss : 0.5 dB (typical) at 1300 nm per FOTP-34 method B
  • Power : Input: 100-240 VAC 50-60 Hz autosensing;
  • Output: 5 VDC
  • Sensitivity : 750 to 1440 nanometers
  • Switching Speed : Typical: 5 msec; Maximum: 10 msec
  • Connectors : (3) pairs of SC; Power: (1) 3.5-mm input
Brand NameBlack Box
Certifications & Standards
  • FCC
  • CE
Country of originUnited States
Frequency60 Hz
Frequency50 Hz
Limited Warranty1 Year
ManufacturerBlack Box Corporation
Manufacturer Part NumberSW1036A
Manufacturer Website Addresshttp://www.blackbox.com
Marketing Information
  • Switch latches mirror movement mechanically into a selected position and holds it there without the need for continuous electrical power.
  • Connect a single workstation to two or more networks or remote devices.
  • Simple to use. To route signals just turn a knob on the front panel.
  • Ideal for government healthcare financial or other applications where a private data-sensitive network connects to a publicly accessible network.
  • For reliable switching in mission-critical environments the micro-mirror is bonded to precise positioning servers.
  • Air-gap isolation provides a physical break in the circuit connection.
  • Operates transparently to signal rates formats and wavelengths and doesn't require an upgrade when your data protocols change or speeds increase.
  • Works with 9-/125-micron single-mode fiber cable.
  • Universal 100-240-VAC power supply.
There's a reason why this type of manual switch continues to be the switch of choice for networking professionals everywhere: This tried-and-true optical switch performs as promised year after year.

This type of switch is reliable because it uses a micro-mirror instead of electronics to route data signals from one fiber optic port to the next. And unlike conventional electronic switches there are no complex and vulnerable electronic circuits to monitor and protect from intrusion component failure or interference. Plus the optical mirror movement on this latching switch maintains the selected position even when there's a power failure.
Product colorBlack
Product ConditionNew
Product NameFiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors
Product TypeFiber Optic Switchbox
TAA CompliantYes
UPC Alternates822088150213

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
