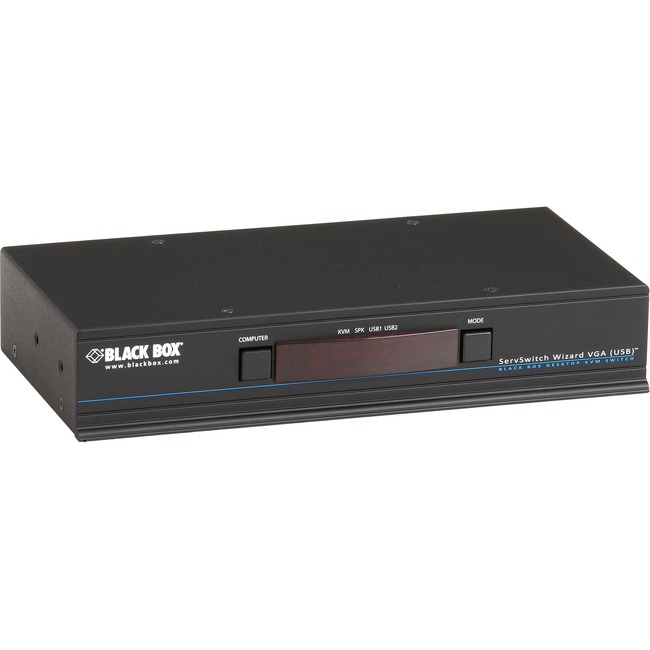

Black Box ServSwitch Wizard VGA, USB, Single-Head Video
| $521.71 Retail $554.44 |
- Enables you to switch up to four computers
- Access up to four computers that support VGA, USB keyboard and mouse
- Switch ports using front push buttons, mouse, and keyboard hotkeys
- Support for VGA resolutions up to 1920x1200
4 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 8 x USB5 x VGA - Desktop
Product Specifications
| Brand Name | Black Box |
| Certifications & Standards | CE |
| Country of origin | United Kingdom |
| Depth | 4.5" |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Desktop |
| Graphic Mode | WUXGA |
| Height | 1.7" |
| Limited Warranty | 2 Year |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV3004A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Intelligent options port ServSwitch Wizard VGA supports a wide range of USB devices especially high-speed USB 2.0 peripherals on its switched USB ports. Printers scanners and non-standard HID devices can all be attached. For instance you can create e-mails on one system listen to audio on a second one print from a third computer and scan documents on a Flash drive - all at the same time. This highly flexible KVM switch is ideal for IT administrators and medical imaging graphic design and broadcast studio professionals who not only require quick reliable access to multiple computer CPUs and multiple video channels but also need simultaneous access to a mix of USB peripherals. Select a channel on the ServSwitch Wizard VGA using hotkeys a three-button mouse or the switch's front-panel controls. When auto-scan is enabled the switch cycles between connected computers in sequence automatically. A seven-segment numeric display indicates the selected channel. The switch is also available in models with dual triple or quad VGA video connectors on each of its four computer channels (KV3204A KV3304A and KV3404A) providing you with easy access to two three or four video heads on each channel. For DVI support see the ServSwitch Wizard DVI Dual-Link with True USB Emulation models (KV2X04A series). Each video head channel on this high-quality switch supports VGA video. Plus it supports high resolutions whether you need a 1920 x 1200 video for post-production type work or 1920 x 1200 image clarity for very detailed medical or R and D lab imaging. Each computer channel on the ServSwitch Wizard VGA has USB Type B and 3.5-mm audio jack inputs. Multicomputer and multi-peripheral access You can also use a KVM console to work on one computer while your favorite USB devices remain connected to other computers all easily accessible to you. And because the ServSwitch Wizard VGA supports audio connectivity you can connect speakers to yet another computer (audio can be switched independently from USB and video). The ServSwitch Wizard Dual-Link VGA's rear panel has two USB Type-A ports as part of its KVM user console connections plus separate switched USB Type-A ports for additional USB 2.0 connectivity. You can reassign any of the connected USB peripherals to any of the connected computers quickly. The attached devices can either be switched in unison or you can mix peripherals between any of the systems. |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Computers Supported | 4 |
| Number of USB Ports | 8 |
| Number of VGA Ports | 5 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Line | ServerSwitch |
| Product Name | ServSwitch Wizard VGA USB Single-Head Video |
| Product Type | KVM Switchbox |
| UPC Alternates | 013269140172 700604201451 822088102878 |
| Weight (Approximate) | 2.10 lb |
| Width | 9.2" |
