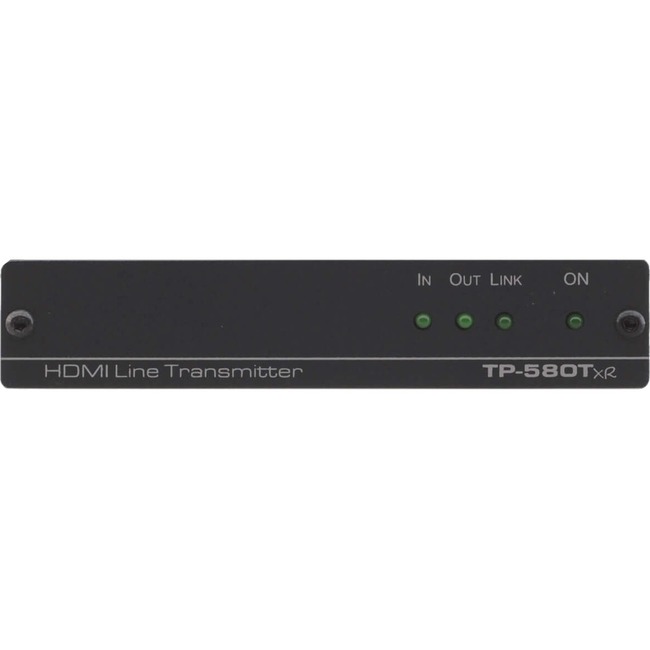

Kramer DigiTOOLS TP-580Txr Video Extender Transmitter - 1 Input Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
1 Input Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable
| Network (RJ-45) | Yes |
| Transmitter Depth | 2.81" |
| Transmitter Height | 0.96" |
| Transmitter Weight (Approximate) | 7.05 oz |
| Transmitter Width | 4.72" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 50-80021190 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | TP-580Txr is a high-performance extended-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI RS-232 and IR signals over twisted pair. The TP-580Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. - High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
- HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant signal. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
- Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting field-proven deployment.
- Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter.
Applications - Long-distance AV and LAN signal extension for multi-room large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms boardrooms control rooms hotels and large church facilities
|
| Maximum Operating Distance | 590.55 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Product Line | DigiTOOLS |
| Product Model | TP-580Txr |
| Product Name | DigiTOOLS TP-580Txr Video Extender Transmitter |
| Product Type | Video Extender Transmitter |
| UPC Alternates | 700315947587 |
