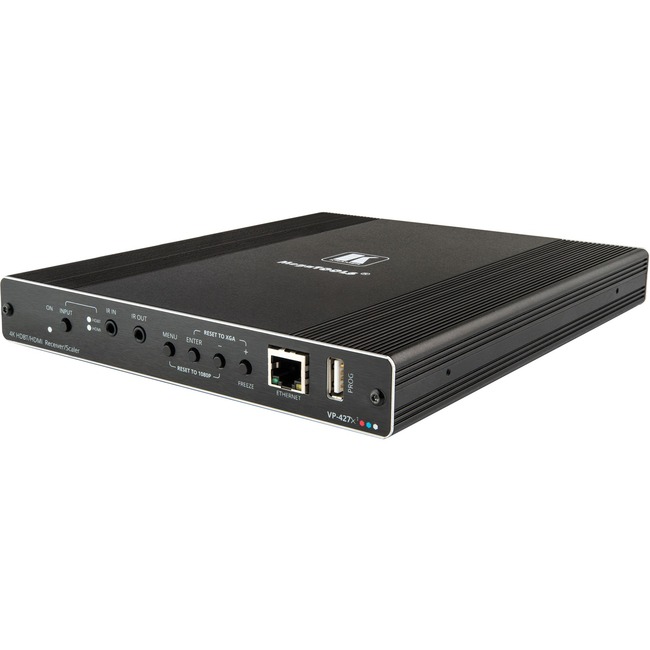

Kramer VP-427X1 4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Input - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Power over Ethernet (PoE) - Desktop
1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - Twisted Pair - Power over Ethernet (PoE) - Desktop
| Receiver Depth | 5.71" |
| Receiver Height | 1" |
| Receiver Weight (Approximate) | 2.43 lb |
| Receiver Width | 7.38" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Form factor | Desktop |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 72-00004690 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | VP-427X1 is a high-performance auto-switcher/scaler receiver with 1 HDBaseT inputs and a local HDMI input for 4K HDMI™ over extended-reach HDBaseT. It supports automatic and manual glitch-free switching between the inputs and up- or down-scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output or it can be manually set by the user. VP-427X1 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. - Comprehensive Receiver/Scaler - Scales signals of all standard resolutions to any resolution up to 4K@60Hz (4:4:4) for routing to the HDMI output. Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
- HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60 CEC xvYCC color (on input).
- Audio De-embedding - Analog balanced stereo output for de-embedding the audio to speakers.
- Data Tunneling - Extend RS-232 IR and Ethernet over the HDBaseT line.
- Built-in Automated Control - Includes easy connection to occupancy sensors and contact closure switches.
- CEC Support - Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
- Cost-Effective and Convenient Control Options - Ethernet and RS-232 serial ports and local control via front panel input selection and OSD menu buttons.
- ProcAmp Control - Contrast brightness color etc.
- Convenient Unit Control and Configuration Options - Local control via front panel source switching buttons and OSD menu. Distance control via RS-232 serial commands transmitted by a PC touch screen system or other serial controllers.
- Easy Cost-effective Maintenance - Local firmware upgrade via USB connector.
- Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.
|
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Product Line | MegaTOOLS |
| Product Model | VP-427X1 |
| Product Name | VP-427X1 4K HDR HDBT Receiver / Scaler Tool with HDBaseT and HDMI Input |
| Product Type | Video Extender Receiver |
| USB | Yes |
