| Effects Type | EQ |
| MIDI Type | MIDI Output |
| MIDI Type | MIDI Input |
| Number of Effects | 2 |
| Number of EQ Bands | 11 |
| Operation Type | Digital |
| Product Material | Plastic |
| Application/Usage | PC |
| Application/Usage | Mac |
| Brand Name | Dynacord |
| Country of origin | Germany |
| Depth | 22.5" |
| Environmental Certification | WEEE |
| Height | 6.5" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 36 Month |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | DC-PM1000-3-UNIV |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information |

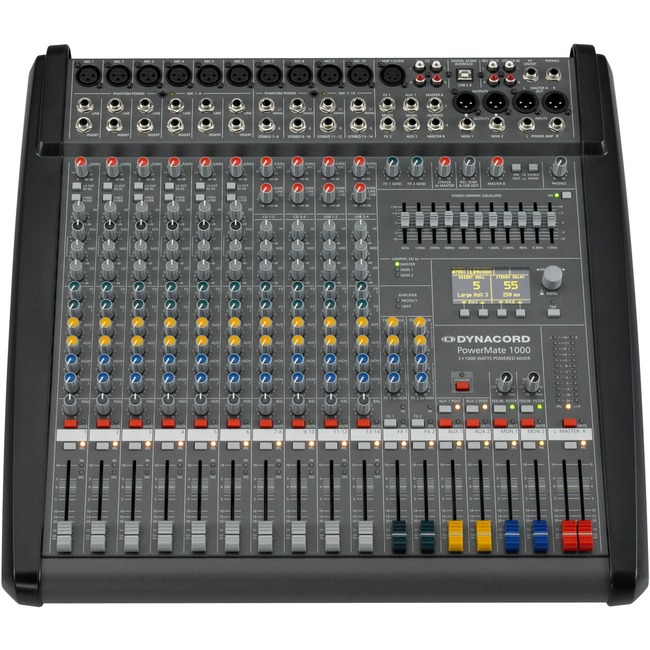

The PowerMate compact power mixers incorporate profound know-how based on our research development and inter-communication with our customers in the professional audio market for decades. It incorporates not less than six dedicated audio devices into one compact frame: mixing console two effects units graphic equalizer USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand-alone device. The PowerMate is a real all-rounder for almost all applications with maximum feature set at minimum size. The mixing section starts with 10 lowest noise discrete microphone preamps. 6 auxiliary busses two of them switchable pre/post fader allow high flexibility for monitoring. The two effects processors offer 100 factory presets including the already legendary PowerMate-reverbs. Further each preset can be edited and stored to 20 User memories. The built in USB audio interface shares 4 playback and four recording channels simultaneously with a PC or Mac following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. A license for Steinbergs Cubase software is part of the package. The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels. The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class-D output stage it's very efficient and lightweight too. An optional speaker protection allows limitation of long-term power without giving up dynamics. Finally the slim housing is protected by a rugged plastic lid with integrated handle for easy transportation. |
| Maximum Frequency Response | 70 kHz |
| Maximum Power Consumption | 450 W |
| Microphone | Yes |
| Minimum Frequency Response | 15 Hz |
| Mount Type | Rack Mountable |
| Number of Channels | 10 |
| Product Line | PowerMate |
| Product Model | PM1000-3 |
| Product Name | 10-channel Compact Power-Mixer |
| Product Type | Audio Mixer |
| Weight (Approximate) | 30.86 lb |
| Width | 20.1" |
