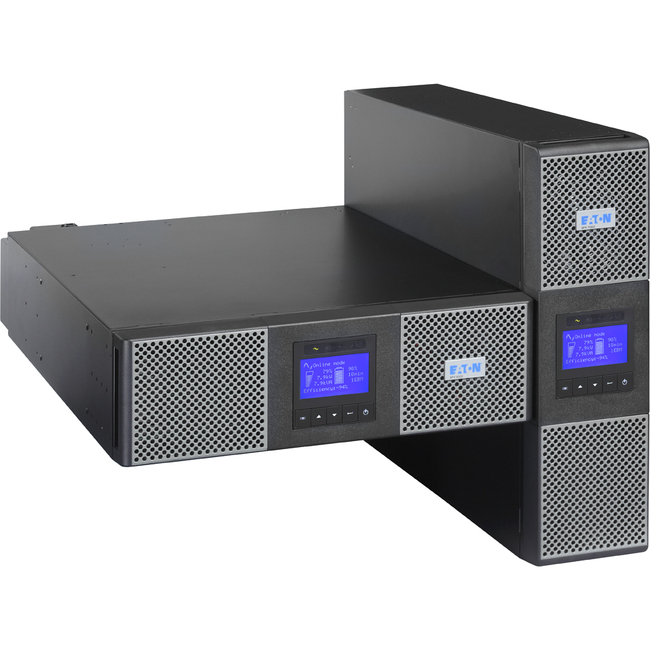

Eaton 9PX 11kVA Rack/Tower Mountable UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC, 250 V AC Output
6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 208 V AC, 200 V AC, 220 V AC, 230 V AC, 240 V AC, 250 V AC Output
| Bypass Switch | Optional |
| Bypass Switch | Optional |
| Bypass Switch | Optional |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Battery Chemistry | Lead Acid |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Brand Name | Eaton |
| Country of origin | China |
| Country of origin | China |
| Depth | 28" |
| Depth | 28" |
| Depth | 28" |
| Emergency Power OFF | Yes |
| Emergency Power OFF | Yes |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 10.2" |
| Height | 10.2" |
| Height | 10.2" |
| Input frequency | 70 Hz |
| Input frequency | 70 Hz |
| Input frequency | 70 Hz |
| Input voltage | 220 V AC |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Input voltage | 110 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 11000 VA |
| Load Capacity | 11000 VA |
| Load Capacity | 11000 VA |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX11KHW |
| Manufacturer Part Number | 9PX11KHW |
| Manufacturer Part Number | 9PX11KHW |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions. |
| Marketing Information | 11kVA/10kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system features hardwired input and output connections. It provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. The 9PX11KHW is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to five extended battery modules (9PXEBM240RT sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT sold separately). Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. Rotating LCD Interface Keeps You Informed at a Glance The intuitive front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations and it tilts up to 45 degrees for more comfortable viewing. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment. Versatile Installation Options You can mount the 9PX11KHW in a tower configuration on a flat stable surface or in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. |
| Marketing Information | The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions. |
| Marketing Information | 11kVA/10kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system features hardwired input and output connections. It provides reliable battery backup and AC power protection against blackouts brownouts surges and line noise that can damage valuable IT equipment or destroy data. The 9PX11KHW is superlative power management for education commercial financial or healthcare networking components including Cisco switches and servers. Expandable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to five extended battery modules (9PXEBM240RT sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT sold separately). Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management including load shedding reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2 sold separately) provides a variety of environmental monitoring capabilities including temperature and humidity conditions. Rotating LCD Interface Keeps You Informed at a Glance The intuitive front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations and it tilts up to 45 degrees for more comfortable viewing. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment. Versatile Installation Options You can mount the 9PX11KHW in a tower configuration on a flat stable surface or in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. |
| Marketing Information | The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions. |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Network Management | SNMP Manageable |
| Output voltage | 208 V AC |
| Output voltage | 230 V AC |
| Output voltage | 250 V AC |
| Output voltage | 250 V AC |
| Output voltage | 230 V AC |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Output voltage | 200 V AC |
| Output voltage | 240 V AC |
| Output voltage | 200 V AC |
| Output voltage | 240 V AC |
| Output voltage | 200 V AC |
| Output voltage | 250 V AC |
| Output voltage | 230 V AC |
| Output voltage | 208 V AC |
| Package Contents | - 9PX 11kVA Rack/Tower Mountable UPS
- 9PX11KPM 11 kVA 3U UPS Power Module
- 9PXEBM240RT 3U Extended Battery Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Package Contents | - 9PX 11kVA Rack/Tower Mountable UPS
- 9PX11KPM 11 kVA 3U UPS Power Module
- 9PXEBM240RT 3U Extended Battery Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Package Contents | - 9PX 11kVA Rack/Tower Mountable UPS
- 9PX11KPM 11 kVA 3U UPS Power Module
- 9PXEBM240RT 3U Extended Battery Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Product Name | 9PX 11kVA Rack/Tower Mountable UPS |
| Product Name | 9PX 11kVA Rack/Tower Mountable UPS |
| Product Name | 9PX 11kVA Rack/Tower Mountable UPS |
| Product Series | 9PX |
| Product Series | 9PX |
| Product Series | 9PX |
| Product Type | Dual Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
