| DC System Voltage | 240 V DC |
| Energy Saving | Green Energy-Saving |
| Environmental Sensors | Temperature Sensor |
| Output Frequency | 60 Hz |
| Overload Protection | Yes |
| Phase | Three Phase |
| Waveform Type | Pure Sine Wave |
| Alarm | Bypass Mode |
| Alarm | UPS Fault |
| Alarm | Overload |
| Alarm | Battery Mode |
| Application/Usage | Communication Application |
| Application/Usage | Security |
| Application/Usage | Network |
| Application/Usage | IT Equipment |
| Application/Usage | Corporate |
| Application/Usage | Emergency |
| Application/Usage | Finance |
| Application/Usage | Industrial |
| Application/Usage | Retail & Wholesale |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Telecommunication |
| Application/Usage | Commercial |
| Application/Usage | Transportation |
| Application/Usage | Server Room |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Battery capacity | 9000 mAh |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Depth | 32.1" |
| Form factor | Tower |
| Height | 39.4" |
| Input Voltage Range | 220 V AC - 240 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 40 kVA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | S3M40KX |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Battery Backup and VFI Operation Protect Critical Loads The SmartOnline® S3M40KX IGBT UPS supports the continuous availability of your most important loads through all power conditions providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 40kVA of clean continuous power this 3-phase UPS system is perfect for critical applications in IT communications corporate commercial retail financial security transportation emergency and light industrial environments. Best-in-Class Footprint for Easy Integration into Your Network Application This on-line double-conversion UPS system has a very small footprint of just 0.24 square meters. It requires less valuable space in your facility and you can install the UPS system in spaces that would previously have required expensive retrofitting. Efficient Operation and Design Reduces Cost of Ownership This IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults overloads and maintenance which also avoids costly system downtime. Supplies Reliable Battery Backup with Expandable Runtime Options Internal 10Ah batteries provide 14 minutes of support at half load and five minutes at full load with zero transfer time. Adding external battery cabinets such as BP480V10 (sold separately) provides extended runtime. The S3M40KX automatically restarts after a lengthy power outage. Intuitive LCD Interface Delivers Important Performance Information at a Glance The interactive front-panel LCD interface displays critical operating conditions and diagnostic data including operating mode input/output voltage load battery voltage backup runtime and fault conditions. Four LEDs provide information about line bypass battery and fault status. Network Management Card Offers Remote Monitoring and Control The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web SSH/telnet and SNMP interfaces as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies. Parallel Capability Provides Additional Capacity Connect up to three S3M40KX units in parallel using separate/shared battery cabinets for increased capacity. 2-Year Warranty Provides Peace of Mind The S3M40KX is backed by a 2-year warranty in Mexico and Puerto Rico and a 1-year warranty in USA and Canada ensuring reliability and performance. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | Telnet |
| Network Management | SSH |
| Network Management | SNMP/HTTP Remote Monitoring |
| Output voltage | 230 V AC |
| Output voltage | 415 V AC |
| Output voltage | 400 V AC |
| Output voltage | 380 V AC |
| Output voltage | 240 V AC |
| Output voltage | 220 V AC |
| Product Family | SmartOnline S3MX |
| Product Line | SmartOnline |

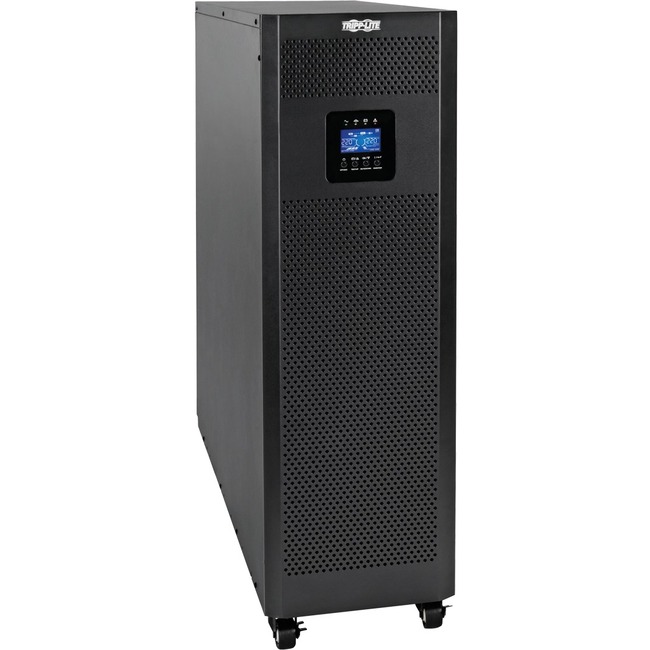

| Product Name | SmartOnline S3MX S3M40KX 40kVA Tower UPS |
| Product Series | S3MX |
| Product Type | Dual Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Status Indicators | LED Indicators:
Front Panel LCD Display:
|
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 9 Hour |
| UPC Alternates | 037332213631 037332225399 |
| Weight (Approximate) | 696 lb |
| Width | 11.8" |
