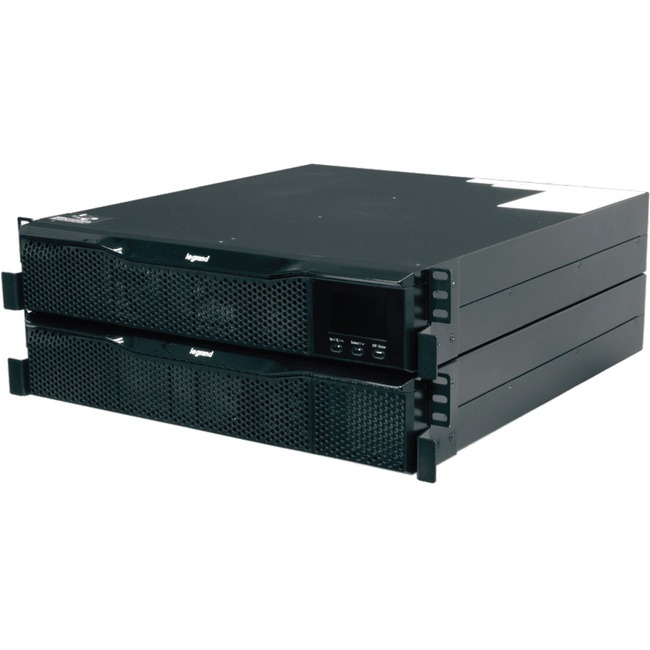

Middle Atlantic UPS-LL-3000RT 3000VA Rack/Tower UPS

Middle Atlantic UPS-LL-3000RT 3000VA Rack/Tower UPS

New
Middle Atlantic UPS-LL-3000RT 3000VA Rack/Tower UPS - Rack/Tower - AVR - 4 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R, 1 x NEMA L5-30R
0 Review(s) Item: UPS-LL-3000RT | By: Middle Atlantic |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Ultra Low Transfer Time: Quick transfer of power from AC to battery
  • Automatic Voltage Regulation (AVR): Corrects voltage irregularities without switching to battery
  • Pure Sinewave Output: Provides the ideal waveform for the most sensitive equipment
  • Wide Input Voltage Range: Enables stable wide range application usage
  • Input Power Factor 0.9: Optimized and ideal efficiency at full load
  • Programmable Outlet Bank: Power management outlets enable programmable control of load segments to extend battery time to mission critical equipment
  • Optional Remote Management Control: Provides visibility and control of power usage and availability, both on-site or at a remote unmanned facility
  • 4-Post Rack Mounting Kit: Included for simplified rack mounting
  • Tower Mounting Option: Includes feet for non-rack applications, enabling the UPS to stand up by providing stability
  • cTUVus listed to UL Standard 1778 in US and
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Middle Atlantic UPS-LL-3000RT 3000VA Rack/Tower UPS - Rack/Tower - AVR - 4 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R, 1 x NEMA L5-30R
Rack/Tower - AVR - 4 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 110 V AC, 115 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R, 1 x NEMA L5-30R

Product Specifications

DC System Voltage82.1 V DC
Input Power Factor0.9
Load Capacity (VA)3000 VA
Load Capacity (W)2700 W
Operating Humidity0% - 90%
Output Frequency60 Hz
Receptacle Detail1 x NEMA L5-30R
Receptacle Detail6 x NEMA 5-20R
Waveform TypePure Sine Wave
Additional Warranty InformationBattery shall be warrantied for a period of 2 years.
Application/UsageCritical System
Backup/Run Time (Full Load)4 Minute
Backup/Run Time (Half Load)12 Minute
Battery capacity9000 mAh
Battery Size12V
Brand NameMiddle Atlantic
Depth24.1"
DisplayLCD
Environmental CertificationRoHS 3
Environmental CertificationRoHS
Environmentally FriendlyYes
Form factorRack/Tower
Height3.5"
Input voltage120 V AC
Input Voltage Range81 V AC - 145 V AC
Length0.9"
Limited Warranty2 Year
Load Capacity3000 VA/2700 W
ManufacturerLegrand Group
Manufacturer Part NumberUPS-LL-3000RT
Manufacturer Website Addresshttp://www.legrand.us
Maximum Operating Temperature104°F (40°C)
Network ManagementSmart RS-232/USB
Number of Batteries6
Output voltage110 V AC
Output voltage115 V AC
Output voltage127 V AC
Package Contents
  • UPS-LL-3000RT 3000VA Rack/Tower UPS
  • 4-Post Rack Mounting Kit
  • Feet
Plug/Connector TypeNEMA L5-30P
Product colorBlack
Product NameUPS-LL-3000RT 3000VA Rack/Tower UPS
Product TypeLine-interactive UPS
Receptacle TypeNEMA L5-30R
Receptacle TypeNEMA 5-20R
Thermal Dissipation72.68 W
Transfer Time10 ms
Typical Battery Recharge Time4 Hour
Weight (Approximate)64.60 lb
Width17.2"
