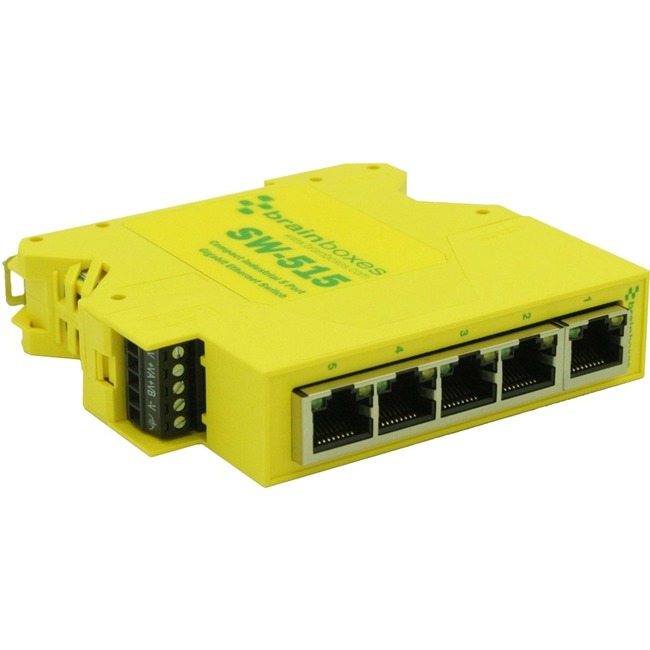

Brainboxes Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable - 5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
5 Ports - TAA Compliant - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty
| Total Number of Network Ports | 5 |
| Brand Name | Brainboxes |
| Country of origin | United Kingdom |
| Depth | 3.7" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | DIN Rail Mountable |
| Height | 3.9" |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | No |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-515 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Marketing Information | Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Package Contents | - Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
- Quick Start Guide
|
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Product Name | Compact Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable |
| Product Type | Ethernet Switch |
| UPC Alternates | 837324004281 |
| Weight (Approximate) | 3.95 oz |
| Width | 0.9" |
