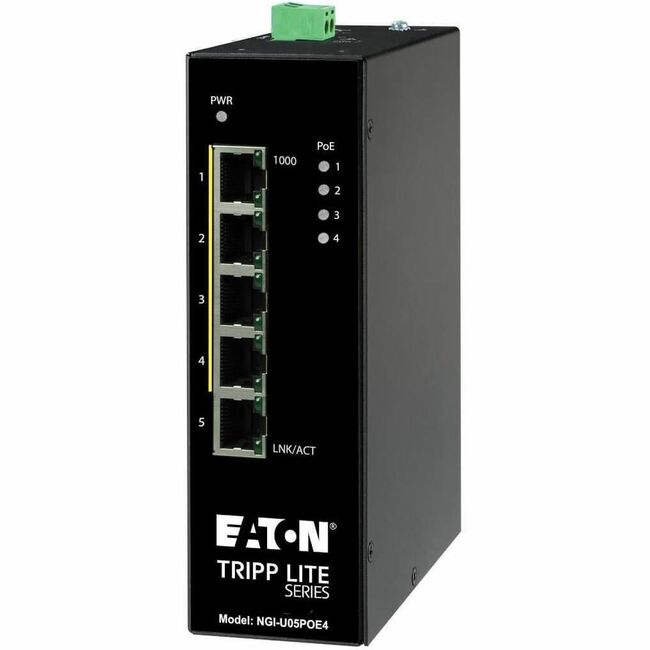

Tripp Lite 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, DIN Mount - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 14 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 14 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable - 3 Year Limited Warranty
| PoE Budget | 120 W |
| PoE Budget | 120 W |
| PoE Budget | 120 W |
| Product Material | Metal |
| Product Material | Metal |
| Product Material | Metal |
| Total Number of Network Ports | 5 |
| Total Number of Network Ports | 5 |
| Total Number of Network Ports | 5 |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 4.7" |
| Depth | 4.7" |
| Depth | 4.7" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | DIN Rail Mountable |
| Form factor | DIN Rail Mountable |
| Height | 6.3" |
| Height | 6.3" |
| Height | 6.3" |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Layer Supported | 2 |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manageable | No |
| Manageable | No |
| Manageable | No |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | NGI-U05POE4 |
| Manufacturer Part Number | NGI-U05POE4 |
| Manufacturer Part Number | NGI-U05POE4 |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | 5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network. PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices such as cameras sensors clocks digital signage and wireless access points without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W. Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05POE4 supports MAC address auto-learning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures the switch features a 2-pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases
The NGI-U05POE4 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Marketing Information | 5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network. PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices such as cameras sensors clocks digital signage and wireless access points without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W. Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05POE4 supports MAC address auto-learning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures the switch features a 2-pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases
The NGI-U05POE4 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Marketing Information | 5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite Power over Ethernet (PoE) switch transmits both power and data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it which improves the efficiency and potential throughput of the network. PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
This unmanaged switch features four PoE ports capable of powering compatible devices such as cameras sensors clocks digital signage and wireless access points without the need to run separate power lines or install the devices near an AC outlet. The NGI-U05POE4 provides PoE+ compatibility up to 30W per PoE port and a PoE budget of 120W. Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05POE4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications such as factory floors warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from 14 degrees to 140 degrees Fahrenheit. Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05POE4 supports MAC address auto-learning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures the switch features a 2-pin 24-57VDC terminal block power input to help prevent unnecessary downtime. Device power must be supplied by SELV circuit. TAA-Compliant for GSA Schedule Purchases
The NGI-U05POE4 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3at |
| Package Contents | - NGI-U05POE4 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
- Owner's Manual
|
| Package Contents | - NGI-U05POE4 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
- Owner's Manual
|
| Package Contents | - NGI-U05POE4 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
- Owner's Manual
|
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Power consumption | 14 W |
| Power consumption | 14 W |
| Power consumption | 14 W |
