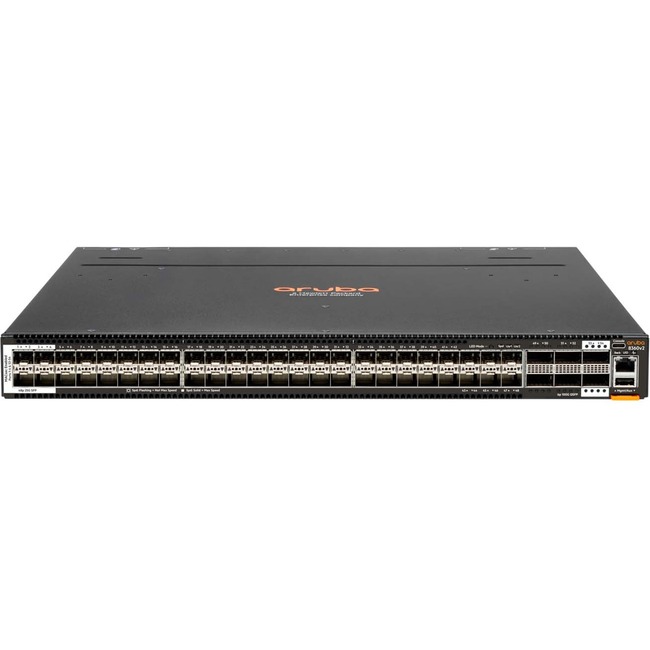

Aruba 8360-48Y6C v2 Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100Base-X - TAA Compliant - 3 Layer Supported - Modular - 725 W Power Consumption - Optical Fiber - 1U High - Rack-mountable, Surface Mount, Cabinet Mount - Lifetime Limited Warranty
Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100Base-X - TAA Compliant - 3 Layer Supported - Modular - 725 W Power Consumption - Optical Fiber - 1U High - Rack-mountable, Surface Mount, Cabinet Mount - Lifetime Limited Warranty
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 2 |
| Number of Total Expansion Slots | 54 |
| Brand Name | Aruba |
| Depth | 22" |
| Environmental Certification | RoHS |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 25 Gigabit Ethernet |
| Expansion Slot Type | QSFP28 |
| Expansion Slot Type | SFP28 |
| Form factor | Rack-mountable |
| Form factor | Surface Mount |
| Form factor | Cabinet Mount |
| Frequency | 63 Hz |
| Frequency | 47 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9G23A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application security and scalability demands of the mobile cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses as well as virtual and highly dynamic data center environments. They provide up to 3.6Tbps of capacity with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5 5 Gbps) 10Gbps 25Gbps 40Gbps 50 Gbps and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition the 48 and 32 x 25G port 8360 models support low- density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. And MACsec with 2 x40/100G port with the 48x25 8360 model PRODUCT DIFFERENTIATORS
The Aruba CX 8360 switch series is based on ArubaOS-CX a modern database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.
Modular Architecture with native cloud-native ArubaOS-CX
ArubaOS-CX is built on a modular Linux architecture with OVSDB providing the following unique capabilities: ? - Safe and powerful access to all state at all times allows unique visibility and analytics capabilities.
- REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services
- Supports Aruba Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
- Continual state synchronization provides superior fault tolerance and high availability ?
- All software processes communicate with the database rather than with each other ensuring high stability with minimal inter-process communication
Aruba Network Analytics Engine
ArubaOS-CX includes Aruba's Network Analytics Engine (NAE) for advanced telemetry and automation. The NAE framework is an industry-first monitoring and troubleshooting system providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues. The Time Series Database (TSDB) may be used to store configuration and operational state. |
| Maximum Data Transfer Rate | 12.50 GB/s |
| Media Type Supported | Optical Fiber |
| Network Technology | 100Base-X |
| Network Technology | 25GBase-X |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3by |
| Networking standards | IEEE 802.1t |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1ak |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3cd |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1AEbw |
| Networking standards | IEEE 802.1ae |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3ba |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3an |
| Networking standards | IEEE 802.1AEbn |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3cc |
| Package Contents | - 8360-48Y6C v2 Ethernet Switch
- 5 Fans
- 2 x Power Supplies
|
| Port/Expansion Slot Details | 6 x 100 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| Power consumption | 725 W |
| Power source | Power Supply |
| Product color | Black |
| Product Model | 8360-48Y6C v2 |
| Product Name | 8360-48Y6C v2 Ethernet Switch |
| Product Series | CX 8360 |
| Product Type | Ethernet Switch |
| UPC Alternates | 190017599526 |
| Weight (Approximate) | 23.65 lb |
| Width | 17.4" |
