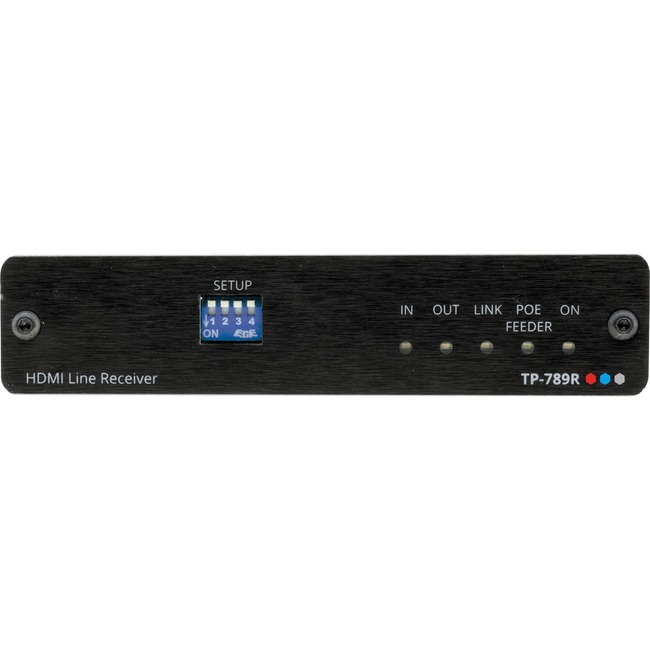

Kramer DigiTOOLS TP-789R Video Extender Receiver - 1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - Twisted Pair - Wall Plate, Rack-mountable
1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - Twisted Pair - Wall Plate, Rack-mountable
| Receiver Depth | 2.81" |
| Receiver Height | 0.96" |
| Receiver Weight (Approximate) | 7.05 oz |
| Receiver Width | 4.72" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Wall Plate |
| Form factor | Rack-mountable |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 50-80506090 |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Marketing Information | TP-789R is a high-performance long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI RS-232 and IR signals and two-way powering over twisted pair. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate or accepts PoE through the extension cable from a PoE provider remote device as auto-sensed by the receiver. - High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals and powering over twisted-pair copper infrastructures. TP-789R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
- Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate or accepts power from a remote PoE provider such as a PoE matrix.
- HDMI Signal Extension - Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control.
- Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
- Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting field-proven deployment.
- Easy Installation - Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
APPLICATIONS - Long-distance AV signal extension for multi-room large dividable auditoriums and lecture hall connectivity
- AV extension in conference rooms boardrooms control rooms hotels and large church facilities
|
| Maximum Operating Distance | 229.66 ft |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - DigiTOOLS TP-789R Video Extender Receiver
- Power Adapter
- Bracket Set
|
| Product Line | DigiTOOLS |
| Product Model | TP-789R |
| Product Name | DigiTOOLS TP-789R Video Extender Receiver |
| Product Type | Video Extender Receiver |
