| Maximum Operating Frequency | 596 MHz |
| Signal to Noise Ratio (SNR A-Weighted) | 100 dB(A) |
| XLR | Yes |
| Brand Name | Electro-Voice |
| Depth | 6.1" |
| Height | 1.7" |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | RE3-RX-5H |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information |

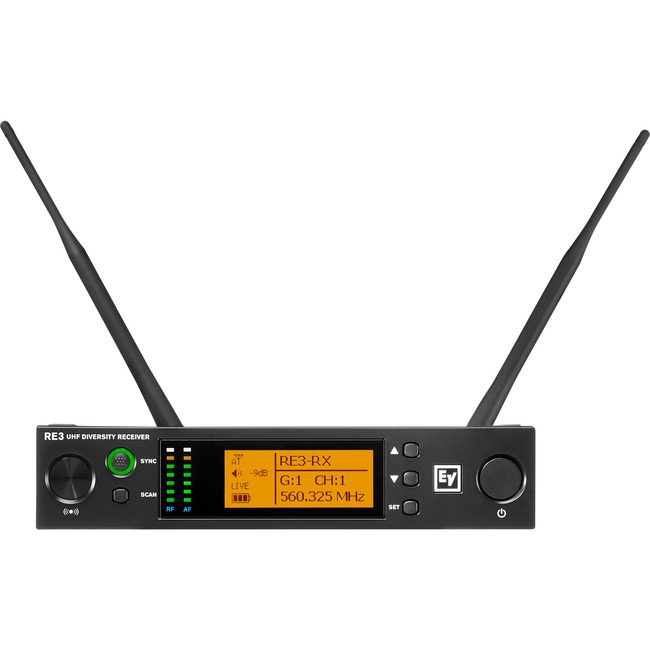

UHF wireless diversity receiver featuring clear frequency scanning wireless synchronization to transmitter balanced XLR and unbalanced ¼" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance. The RE3-RX is a professional rack-mountable ½ space diversity receiver. Designed to function as the control center for an RE3 wireless set it features frequency scanning and synchronizing as well as full transmitter control settings which synchronize to a mated transmitter. The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations which are electronically chosen moment-by-moment based on signal strength and stability. The easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter. The wide tuning bandwidth provides access to a wide range of frequencies selectable in 25kHz steps for trouble-free operation of single and multi-channel systems. The easy-to-read LCD display provides vivid viewing of all menus and operating parameters. |
| Maximum Frequency Response | 16 kHz |
| Minimum Frequency Response | 51 Hz |
| Minimum Operating Frequency | 560 MHz |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product color | Black |
| Product Name | RE3-RX Diversity Receiver |
| Product Type | Wireless Microphone System Receiver |
| UPC Alternates | 800549895255 |
| Weight (Approximate) | 2.71 lb |
| Width | 8.3" |
