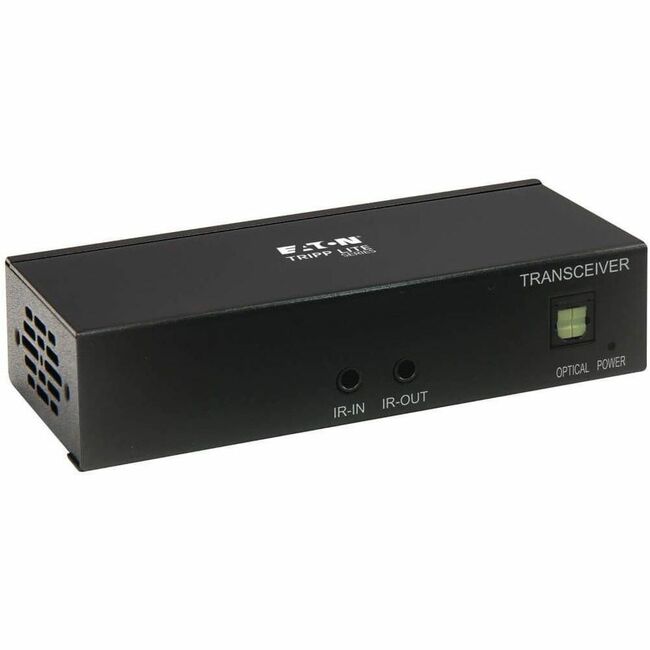

Tripp Lite HDMI Over Cat6 Receiver w Repeater 4K60Hz HDR 4:4:4 PoC IR TAA

Features

HDMI Extender Transceiver Unit Ideal for Digital Signage in Schools and Restaurants
This 4K IR transceiver is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Combines with Tripp Lite HDMI Extender Kit to Add More Distance
The B127A-110-BH works with Tripp Lite's B127A-111-BHTH extender kit (sold separately) to further extend a 4K audio/video signal up to 230 feet. It connects between the transmitter and transceiver from the extender kit with user-supplied Cat6 cabling. IR remote control lets you operate the source from the display end of the installation.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-110-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz as specified by HDMI 2.0 with full rich uncompressed DTS-HD Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This transceiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Create a Daisy Chain to Achieve More Distance
This transceiver combines with the Tripp Lite B127A-111-BHTH extender kit (sold separately) and additional B127A-110-BH transceivers to form daisy-chain installations up to 920 feet from the transmitter. Up to four total transceivers can be chained together each capable of extending a 4K/60 Hz signal up to 230 feet per unit. In addition to the extender kit this transceiver is also compatible with Tripp Lite's B127A-1A1-BCBH B127A-1A1-BDBH and B127A-1A1-BHBH and can be used to replace any receivers in the installation as well.

Add a Tripp Lite Signal Booster to Achieve Yes Even More Distance
The transceiver is also compatible with Tripp Lite's B127A-010-H signal booster (sold separately) which allows the signal to be boosted up to 400 feet total between the transmitter and transceiver. When used in a daisy-chain installation this brings the total extension distance up to 1090 ft. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.

Built-In PoC Technology Lets You Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the receiver at the end of the chain over Cat6 cable. LEDs on both the transmitter and transceiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transceiver where needed without worrying about finding a nearby AC outlet. Power is also equally distributed to any additional transceivers within a daisy-chain installation.

Plug-and-Play Operation for Quick Setup and Immediate Use
The transceiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall pole or 19-inch rack. Connect the transceiver to a transmitter and any additional transceiver with user-supplied Cat6 patch cable (such as Tripp Lite's N202-Series). Connect to a 4K display with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series).

• B127A-110-BH HDMI over Cat6 IR Transceiver
• External Power Supply (Input: 100-240V 50/60 Hz 0.6A; Output: 24V 1A)
• 4 x International Plug Adapters (North America Europe U.K. and Australia)
• Mounting Hardware
• Owner's Manual
