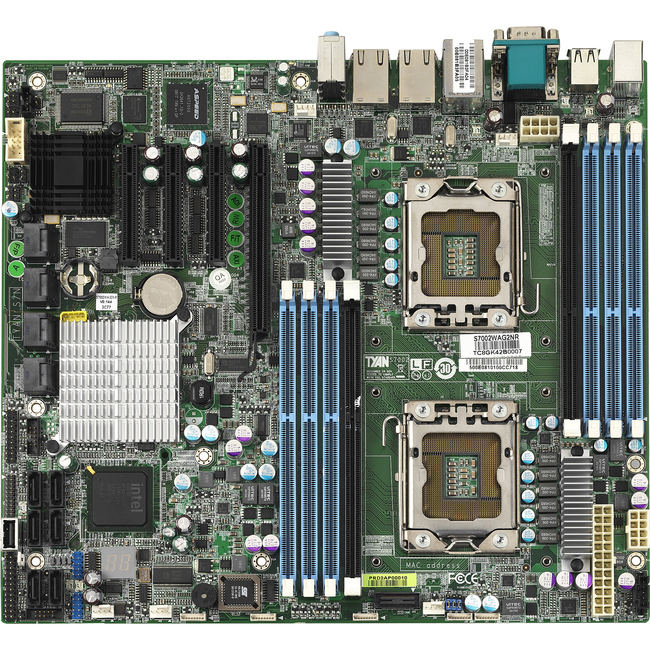

Tyan S7002 Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - SSI CEB - 64 GB DDR3 SDRAM Maximum RAM - DDR3-800/PC3-6400, DDR3-1066/PC3-8500, DDR3-1333/PC3-10600 (O.C.) - 8 x Memory Slots - 6 x SATA Interfaces
64 GB DDR3 SDRAM Maximum RAM - DDR3-800/PC3-6400, DDR3-1066/PC3-8500, DDR3-1333/PC3-10600 (O.C.) - 8 x Memory Slots - 6 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | 5520 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2050 |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 800 MHz |
| Memory Speed Supported | 1066 MHz |
| Memory Speed Supported | 1333 MHz |
| Memory Standard | DDR3-1333/PC3-10600 (O.C.) |
| Memory Standard | DDR3-800/PC3-6400 |
| Memory Standard | DDR3-1066/PC3-8500 |
| Multi GPU Supported | SLI |
| Number of Memory Slots | 8 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 2.0 |
| Processor Socket | Socket B LGA-1366 |
| Processor Supported | Xeon |
| Processor Technology | Turbo Boost Technology |
| Processor Technology | Virtualization Technology |
| Processor Technology | Hyper-Threading Technology |
| Processor Technology | Enhanced SpeedStep Technology |
| QuickPath Interconnect | 6.40 GT/s |
| Total Processor Supported | 2 |
| Brand Name | Tyan |
| Buttons & Keys | Power |
| Controller Type | 3Gb/s SAS |
| Controller Type | Serial ATA/300 |
| Depth | 10.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | SSI CEB |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S7002WGM2NR |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | The TYAN S7002 series motherboard is designed to support up to two Intel Nehalem-EP 2S processors and up to 64GB DDR3-800/1066/1333 memory. Leveraging the advanced technology from Intel the TYAN S7002 series is capable of offering a scalable 32 and 64-bit computing environment with high-bandwidth memory design and lightning-fast PCI-E bus providing a rich feature set and incredible performance. |
| Memory form factor | DIMM |
| Memory Technology | DDR3 SDRAM |
| Package Contents | - S7002 S7002WGM2NR Server Board
- 1 x User manual
- 1 x TYAN installation CD
- 1 x I/O Shield
- 6 x SATA signal cables
- 2 x CCBL-067P SAS cable for S7002
|
| Product Model | S7002 |
| Product Name | S7002 Server Motherboard |
| Product Type | Server Motherboard |
| RAID Levels | 1E |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 1+0 |
| RAID Levels | 5 |
| UPC Alternates | 635872024429 |
| Width | 12" |
