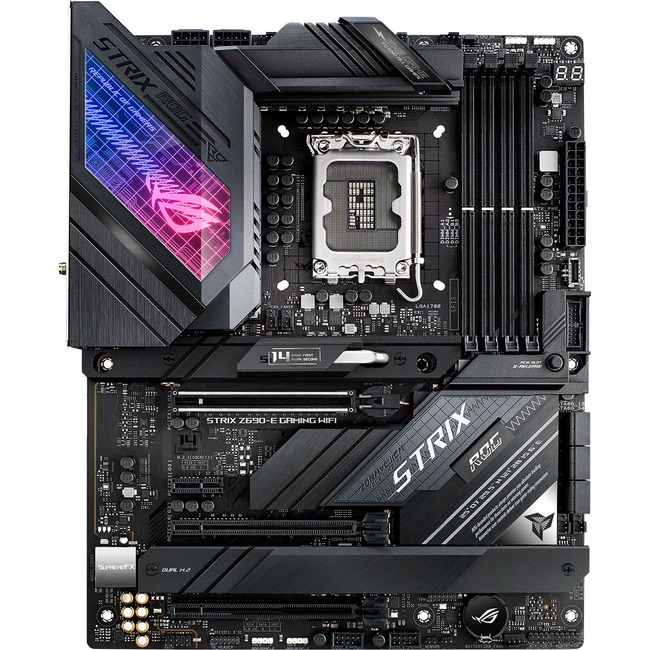

Asus ROG Strix Z690-E GAMING WIFI Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Intel^® Z690 LGA 1700 ATX motherboard with PCIe^® 5.0 18+1 power stages DDR5 Two-Way AI Noise Cancelation WiFi 6E Intel^® 2.5 Gb Ethernet five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card) PCIe^® 5.0 NVMe^® SSD support M.2 Combo-Sink M.2 backplate PCIe^® Slot Q-Release USB 3.2 Gen 2x2 Type-C^® SATA and Aura Sync RGB lighting

• Ready for 12th Gen Intel^® Core™ Pentium^® Gold and Celeron^® processors
• Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad L-shaped heatpipe an M.2 Combo-sink for PCIe^® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
• High-performance Networking: On-board Intel^® WiFi 6E (802.11ax) and Intel^® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort™ 1.4 output five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C^®
• Intelligent Control: ASUS-exclusive AI Overclocking AI Cooling AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe^® Slot Q-Release M.2 Q-Latch pre-mounted I/O shield BIOS FlashBack™ button and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier along with DTS^® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

ROG STRIX Z690-E GAMING WIFI

ROG Strix Z690-E Gaming WiFi puts 12^th Gen Intel^® Core™ processors at center stage with beefed-up power delivery cooling cutting-edge connectivity options and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.

ALL-ROUND PERFORMANCE

ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

POWER DESIGN

Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

18+1 power stages combine high-side and low-side MOSFETS and drivers into a single package delivering power and efficiency that the latest Intel processors can take full advantage of.

LEADING CONNECTIVITIY

ROG Strix Z690-E Gaming WiFi delivers wickedly fast connectivity supersmooth online experiences and ultrafast data transfers including onboard PCIe 5.0 M.2 support and a ROG Hyper M.2 Card for potentially huge storage capacity. Add alongside those perks we've managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
