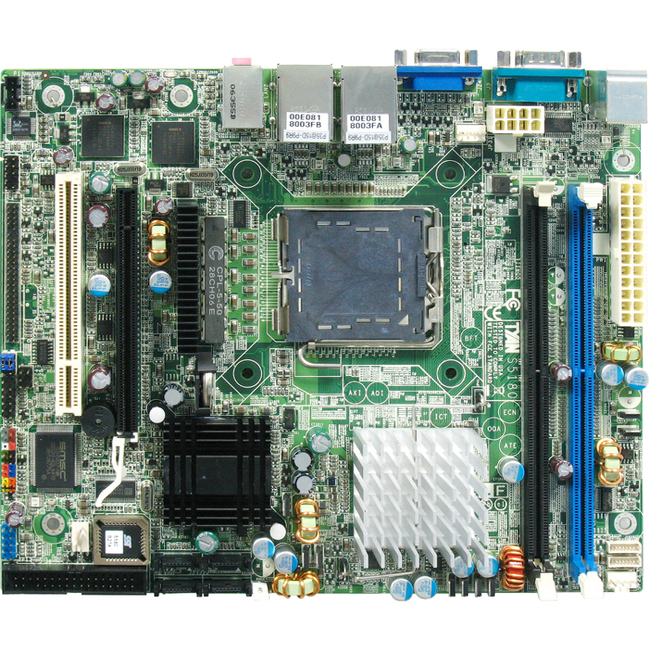

Tyan Toledo S5180AG2N Workstation Motherboard - Intel Q965 Express Chipset - Socket T LGA-775 - Flex ATX - Pentium 4, Pentium D, Core 2 Duo Processor Supported - 4 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 2 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
Pentium 4, Pentium D, Core 2 Duo Processor Supported - 4 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 2 x Memory Slots - Gigabit Ethernet - 4 x SATA Interfaces
| Chipset Manufacturer | Intel |
| Chipset Model | Q965 Express |
| Front Side Bus | 1066 MHz |
| Front Side Bus | 533 MHz |
| Front Side Bus | 800 MHz |
| Maximum Memory Supported | 4 GB |
| Memory Speed Supported | 667 MHz |
| Memory Standard | DDR2-667/PC2-5300 |
| Memory Standard | DDR2-533/PC2-4200 |
| Memory Standard | DDR2-800/PC2-6400 |
| Number of Memory Slots | 2 |
| Number of SATA Interfaces | 4 |
| Onboard Video | On-board Video Chipset |
| Power Supply Supported | EPS12V |
| Processor Socket | Socket T LGA-775 |
| Processor Supported | Core 2 Duo |
| Processor Supported | Pentium D |
| Processor Supported | Pentium 4 |
| Processor Supported | Xeon |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC262 |
| Total Processor Supported | 1 |
| Brand Name | Tyan |
| Certifications & Standards | |
| Controller Type | Serial ATA/300 |
| Controller Type | Floppy Controller |
| Depth | 7.5" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Flex ATX |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | S5180AG2N |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | One of the most powerful Intel processor solutions Toledo i965R (S5180AG2N). The i965R S5180AG2N is a flexible Intel platform for multiple applications based on the Intel Q965 "Broadwater" MCH+ICH8 chipsets. It is designed to support Intel Pentium 4 Pentium D and Core 2 Duo processors: Cedar Mill/Presler/Conroe Processors and up to 4GB DDR2-533/667/800 DIMM. This motherboard features 1 FLEX-ATX form factor 6 USB ports 2 Gigabit LAN ports and 4 SATA-II ports. The S5180 offers exceptional performance and versatility for all your server platform needs. |
| Memory form factor | DIMM |
| Memory Technology | DDR2 SDRAM |
| Product Line | Toledo |
| Product Name | Toledo i965R (S5180) S5180AG2N Workstation Motherboard |
| Product Series | i965R (S5180) |
| Product Type | Workstation Motherboard |
| UPC Alternates | 635872014628 |
| Width | 9" |
