Tripp Lite Preloaded Fiber Panel 3U 64x12F MTP/MPO-APC 4xLC F/F OS2 SMF 3M

New

Tripp Lite Preloaded Fiber Panel 3U 64x12F MTP/MPO-APC 4xLC F/F OS2 SMF 3M - 256 x Duplex - 3U High - Yellow - 19" Wide - Rack-mountable

0 Review(s) Item: N48S-64M8L4-03 | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

64 MTP/MPO-to-LC 8-fiber OS2 singlemode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved

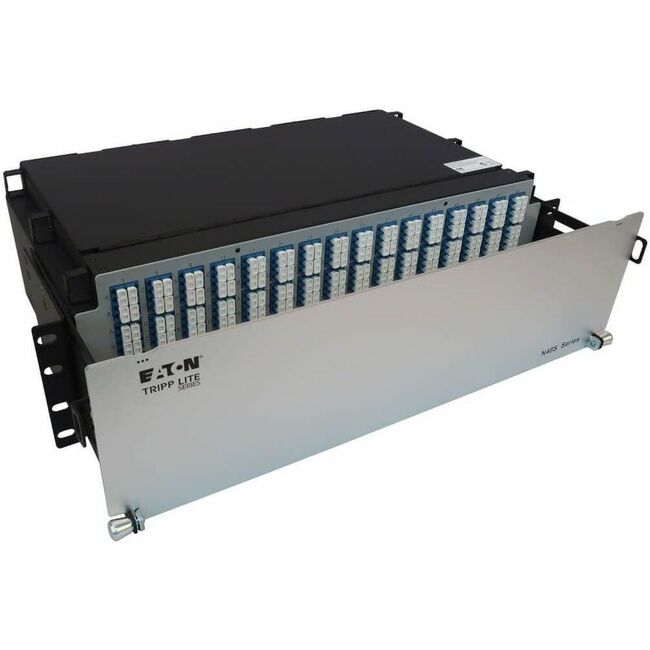

256 LC Duplex ports protected by fold-down front panel with organization labels
Aluminum chassis mounts into 3U of space in EIA-standard 19 in. racks

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite Preloaded Fiber Panel 3U 64x12F MTP/MPO-APC 4xLC F/F OS2 SMF 3M - 256 x Duplex - 3U High - Yellow - 19" Wide - Rack-mountable
256 x Duplex - 3U High - Yellow - 19" Wide - Rack-mountable

Product Specifications

Compatible Rack Unit	3U
Compatible Rack Unit	3U
Compatible Rack Unit	3U
Compatible Rack Width	19"
Compatible Rack Width	19"
Compatible Rack Width	19"
LC Port Type	Duplex
LC Port Type	Duplex
LC Port Type	Duplex
Number of LC Ports	256
Number of LC Ports	256
Number of LC Ports	256
Product Material	Aluminum
Product Material	PVC
Product Material	PVC
Product Material	PVC
Product Material	Aluminum
Product Material	Aluminum
Additional Information	OVERVIEW Technology MTP/MPO; Singlemode Optical Mode OS2; SM Panel Cable Number 64 Panel Cable Length (m) 3 Fiber Panel Ports (256) LC Duplex; (64) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 9 Primary Coating Diameter (micron) 245 Number of Fibers 8 Cable Length (ft.) 9.8 Cable Length (m) 2.99 Cable Length (in.) 118.1 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36 dB/KM Attenuation @ 1550NM 0.22 dB/KM Insertion Loss MTP/MPO: 0.70dB; LC: 0.30dB
Additional Information	OVERVIEW Technology MTP/MPO; Singlemode Optical Mode OS2; SM Panel Cable Number 64 Panel Cable Length (m) 3 Fiber Panel Ports (256) LC Duplex; (64) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 9 Primary Coating Diameter (micron) 245 Number of Fibers 8 Cable Length (ft.) 9.8 Cable Length (m) 2.99 Cable Length (in.) 118.1 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36 dB/KM Attenuation @ 1550NM 0.22 dB/KM Insertion Loss MTP/MPO: 0.70dB; LC: 0.30dB
Additional Information	OVERVIEW Technology MTP/MPO; Singlemode Optical Mode OS2; SM Panel Cable Number 64 Panel Cable Length (m) 3 Fiber Panel Ports (256) LC Duplex; (64) MTP/MPO Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 9 Primary Coating Diameter (micron) 245 Number of Fibers 8 Cable Length (ft.) 9.8 Cable Length (m) 2.99 Cable Length (in.) 118.1 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36 dB/KM Attenuation @ 1550NM 0.22 dB/KM Insertion Loss MTP/MPO: 0.70dB; LC: 0.30dB
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Country of origin	China
Country of origin	China
Country of origin	China
Depth	13"
Depth	13"
Depth	13"
Environmental Certification	RoHS
Environmental Certification	REACH
Environmental Certification	RoHS
Environmental Certification	REACH
Environmental Certification	RoHS
Environmental Certification	REACH
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Form factor	Rack-mountable
Form factor	Rack-mountable

Form factor	Rack-mountable
Height	5.2"
Height	5.2"
Height	5.2"
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N48S64M8L403
Manufacturer Part Number	N48S-64M8L4-03
Manufacturer Part Number	N48S-64M8L4-03
Manufacturer Part Number	N48S-64M8L4-03
Manufacturer Part Number	N48S64M8L403
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	3U patch panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Patch Panel 3U - 64x (12F MTP/MPO-APC to 4x LC Duplex F/F) 8F Trunk Cables OS2 Singlemode 3 m (9.8 ft.) Features 3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 3U chassis features 64 MTP/MPO-APC to LC Duplex 8-fiber singlemode trunk cables all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. Integrates Equipment to Meet Current Connectivity Needs This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple elegant and flexible manner. The N48S-64M8L4-03 mounts in just 3U of space in an EIA-standard 19-inch rack.
Marketing Information	3U patch panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Patch Panel 3U - 64x (12F MTP/MPO-APC to 4x LC Duplex F/F) 8F Trunk Cables OS2 Singlemode 3 m (9.8 ft.) Features 3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 3U chassis features 64 MTP/MPO-APC to LC Duplex 8-fiber singlemode trunk cables all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. Integrates Equipment to Meet Current Connectivity Needs This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple elegant and flexible manner. The N48S-64M8L4-03 mounts in just 3U of space in an EIA-standard 19-inch rack.
Marketing Information	3U patch panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Patch Panel 3U - 64x (12F MTP/MPO-APC to 4x LC Duplex F/F) 8F Trunk Cables OS2 Singlemode 3 m (9.8 ft.) Features 3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 3U chassis features 64 MTP/MPO-APC to LC Duplex 8-fiber singlemode trunk cables all three meters (9.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. Integrates Equipment to Meet Current Connectivity Needs This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple elegant and flexible manner. The N48S-64M8L4-03 mounts in just 3U of space in an EIA-standard 19-inch rack.
Package Contents	N48M-64M8L4-03 Preloaded Fiber Patch Panel 64 x MTP/MPO-APC to LC Duplex Trunk Cables 3 m (9.8 ft.) Installation Guide
Package Contents	N48M-64M8L4-03 Preloaded Fiber Patch Panel 64 x MTP/MPO-APC to LC Duplex Trunk Cables 3 m (9.8 ft.) Installation Guide
Package Contents	N48M-64M8L4-03 Preloaded Fiber Patch Panel 64 x MTP/MPO-APC to LC Duplex Trunk Cables 3 m (9.8 ft.) Installation Guide
Product color	Yellow
Product color	Yellow
Product color	Yellow
Product Model	N48S-64M8L4-03
Product Model	N48S-64M8L4-03
Product Name	N48S-64M8L4-03 Preloaded Fiber Patch Panel
Product Name	N48S-64M8L4-03 Preloaded Fiber Patch Panel
Product Name	N48S-64M8L4-03 Preloaded Fiber Patch Panel
Product Type	Network Patch Panel
Product Type	Network Patch Panel
Product Type	Network Patch Panel
UPC Alternates	037332262776
UPC Alternates	037332262776
UPC Alternates	037332262776
Width	17.4"
Width	17.4"
Width	17.4"
