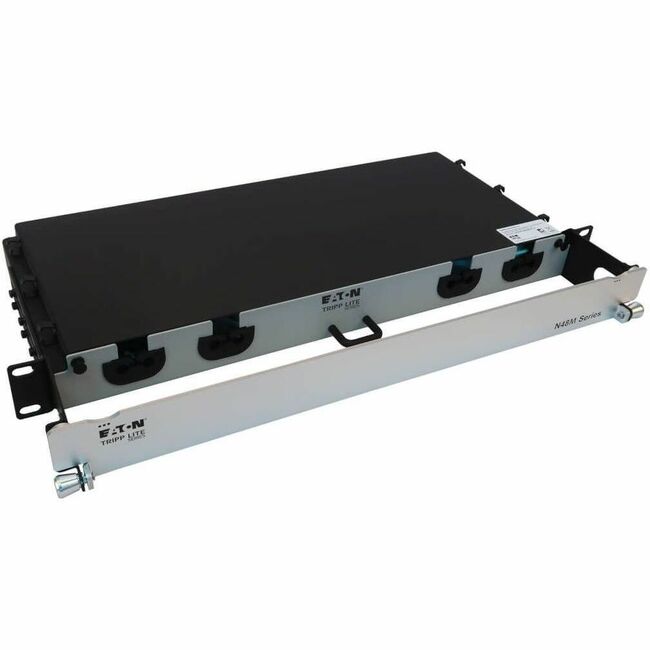

Tripp Lite Preloaded Fiber Panel 1U 4x 3x8F MTP/MPO-PC F/F 24F OM4 MMF 10M

New

Tripp Lite Preloaded Fiber Panel 1U 4x 3x8F MTP/MPO-PC F/F 24F OM4 MMF 10M - 1U High - Aqua - 19" Wide - Rack-mountable

0 Review(s) Item: N48M-4M3X8M-10 | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks
4 MTP/MPO-PC 24-fiber OM4 multimode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite Preloaded Fiber Panel 1U 4x 3x8F MTP/MPO-PC F/F 24F OM4 MMF 10M - 1U High - Aqua - 19" Wide - Rack-mountable
1U High - Aqua - 19" Wide - Rack-mountable

Product Specifications

Compatible Rack Unit	1U
Compatible Rack Width	19"
Product Material	Aluminum
Additional Information	OVERVIEW Technology MTP/MPO; Multimode Optical Mode OM4 Panel Cable Number 4 Panel Cable Length (m) 10 Mode Type Multimode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 50 Primary Coating Diameter (micron) 245 Number of Fibers 24 Cable Length (ft.) 32.8 Cable Length (m) 10.00 Cable Length (in.) 393.7 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1300nm; 850nm Attenuation @ 850NM 3.0dB/KM Attenuation @ 1300NM 1.0dB/KM Insertion Loss 0.35dB
Brand Name	Tripp Lite
Country of origin	China
Depth	10.2"
Environmental Certification	REACH
Environmental Certification	RoHS
Environmentally Friendly	Yes
Form factor	Rack-mountable

Height	1.7"
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N48M-4M3X8M-10
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	1U panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Panel 1U - 4x (3x8F MTP/MPO-PC F/F) 24F Trunk Cables OM4 Multimode 10 m (32.8 ft.)
Package Contents	N48M-4M3X8M-10 Preloaded Fiber Panel 4 x MTP/MPO-PC to MTP/MPOPC Trunk Cables 10 m (32.8 ft.) Installation Guide
Product color	Aqua
Product Name	N48M-4M3X8M-10 Preloaded Fiber Panel
Product Type	Network Patch Panel
UPC Alternates	037332264015
Width	17.3"
