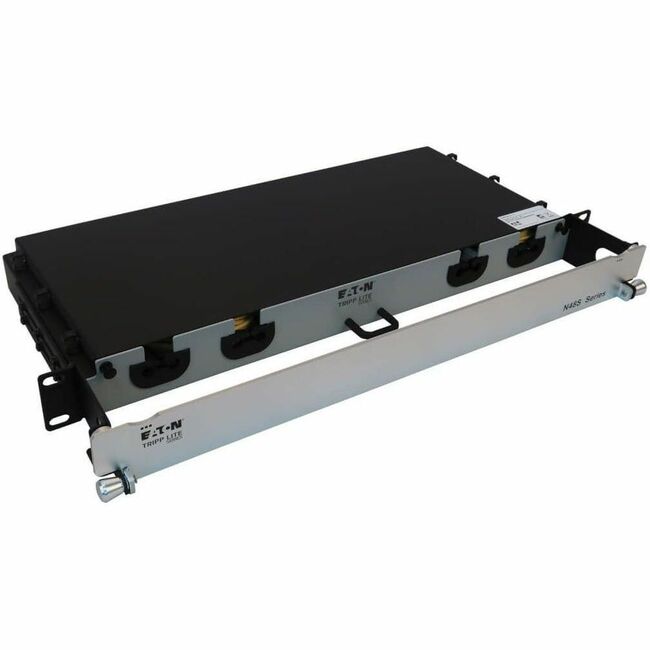

Tripp Lite Preloaded Fiber Panel 1U 8x LC/LC Duplex Cables M/M O2S SMF 10M

New

Tripp Lite Preloaded Fiber Panel 1U 8x LC/LC Duplex Cables M/M O2S SMF 10M - 8 x Duplex - 1U High - Yellow - 19" Wide - Rack-mountable

0 Review(s) Item: N48S-8L2L-10 | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

8 LC Duplex 10-meter OS2 singlemode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved
Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite Preloaded Fiber Panel 1U 8x LC/LC Duplex Cables M/M O2S SMF 10M - 8 x Duplex - 1U High - Yellow - 19" Wide - Rack-mountable
8 x Duplex - 1U High - Yellow - 19" Wide - Rack-mountable

Product Specifications

Compatible Rack Unit	1U
Compatible Rack Width	19"
LC Port Type	Duplex
Number of LC Ports	8
Product Material	PVC
Product Material	Aluminum
Additional Information	OVERVIEW Technology Singlemode Optical Mode OS2; SM Panel Cable Number 8 Panel Cable Length (m) 10 Mode Type Singlemode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 9 Primary Coating Diameter (micron) 245 Number of Fibers 2 Cable Length (ft.) 32.8 Cable Length (m) 10.00 Cable Length (in.) 393.7 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1310nm; 1550nm Attenuation @ 1310NM 0.36 dB/KM Attenuation @ 1550NM 0.22 dB/KM Insertion Loss 0.30dB
Brand Name	Tripp Lite
Country of origin	China
Depth	10.2"
Environmental Certification	RoHS
Environmental Certification	REACH
Environmentally Friendly	Yes

Form factor	Rack-mountable
Height	1.7"
Limited Warranty	Lifetime
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	N48S-8L2L-10
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	1U panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight. Description Preloaded Fiber Panel 1U - 8x LC/LC Duplex Cables (M/M) OS2 Singlemode 10 m (32.8 ft.) Features 1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 1U chassis features eight LC Duplex singlemode cables all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48S-8L2L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.
Package Contents	N48S-8L2L-10 Preloaded Fiber Panel 8 x LC Duplex to LC Duplex Cables 10 m (32.8 ft.) Installation Guide
Product color	Yellow
Product Name	N48S-8L2L-10 Preloaded Fiber Panel
Product Type	Network Patch Panel
UPC Alternates	037332262370
Width	17.3"
