GeoVision GV-TDR2704-2F Outdoor Full HD Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 2.80 mm Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount - IK10 - IP67 - Vandal Resistant
98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 2.80 mm Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount - IK10 - IP67 - Vandal Resistant
Field of View | 113° |
Impact Protection Rating | IK10 |
Indoor/Outdoor | Outdoor |
Ingress Protection Rating | IP67 |
Maximum Aperture | f/2 |
Minimum Operating Temperature | -22°F (-30°C) |
Night Vision Distance | 98.43 ft |
Night Vision Type | Infrared |
Number of IR LEDs | 1 |
Operating Humidity | 90% |
Brand Name | GeoVision |
Color Supported | Color |
Connectivity technology | Wired |
Diameter | 4.3" |
Durability | Vandal Resistant |
Environmental Certification | RoHS |
Environmentally Friendly | Yes |
Features | Tampering Alarm |
Features | Built-in IR LED |
Features | Removable IR Cut-off Filter |
Features | Privacy Masking |
Features | Wide Dynamic Range |
Features | SD Card Local Storage |
Features | Cross Line Detection |
Features | Motion Detection |
Features | Defog |
Features | Automatic White Balance |
Features | Auto Gain Control |
Features | 3D Noise Reduction |
Features | Day/Night |
Form factor | Dome |
Image Sensor Type | CMOS |
Input voltage | 12 V DC |
Lens Type | Fixed |
Longest Shutter Speed | 1 Second |
Manufacturer | GeoVision Inc |
Manufacturer Part Number | GV-TDR2704-2F |
Manufacturer Website Address | http://www.geovision.com.tw |

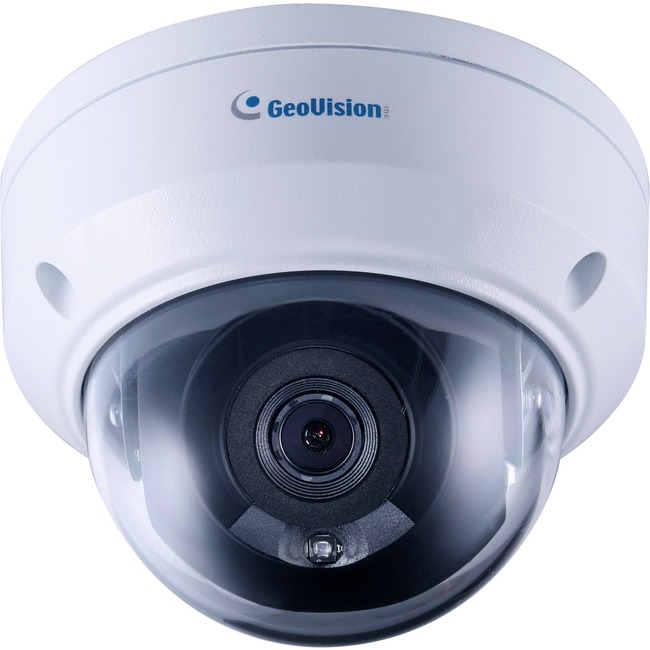

Marketing Information | The Mini Fixed Rugged IP Dome is an outdoor fixed network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards and can be powered through PoE. |
Maximum Focal Length | 2.80 mm |
Maximum frame rate | 30 fps |
Maximum Operating Temperature | 140°F (60°C) |
Maximum Video Resolution | 1920 x 1080 |
Mount Type | Pendant Mount |
Mount Type | Corner Mount |
Mount Type | Ceiling Mount |
Mount Type | Wall Mount |
Mount Type | Pole Mount |
Mount Type | Junction Box Mount |
Product Name | 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome |
Product Series | GV-TDR2704 |
Product Type | Network Camera |
Recording Formats | Full HD |
Shortest Shutter Speed | 1/100000 Second |
Storage Type | Memory Card |
Video Formats | H.265 |
Video Formats | MJPEG |
Video Formats | H.264 |
Weight (Approximate) | 12.70 oz |
