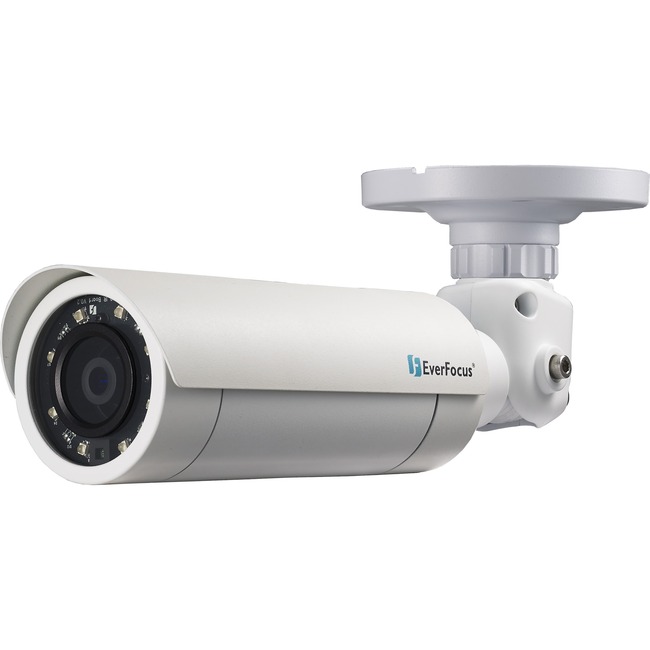

EverFocus NeVio EZN1260 2 Megapixel Network Camera - Color, Monochrome - Bullet - H.264, MJPEG, MPEG-4 - 1920 x 1080 Fixed Lens - CMOS - Fast Ethernet - Weather Resistant
H.264, MJPEG, MPEG-4 - 1920 x 1080 Fixed Lens - CMOS - Fast Ethernet - Weather Resistant
| Field of View | 48° |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Maximum Aperture | f/1.6 |
| Brand Name | EverFocus |
| Certifications & Standards | |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity technology | Wired |
| Depth | 7.8" |
| Diameter | 2.4" |
| Digital zoom | 10x |
| Durability | Weather Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Features | SD Card Local Storage |
| Features | Day/Night |
| Features | 3D Digital Noise Reduction |
| Features | Motion Detection |
| Features | 2D Digital Noise Reduction (2DNR) |
| Features | Privacy Masking |
| Features | Tamper Detection |
| Features | Back Light Compensation (BLC) |
| Form factor | Bullet |
| Image Sensor Size | 1/2.7" |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Limited Warranty | 3 Year |
| Longest Shutter Speed | 4 Second |
| Manufacturer | EverFocus Electronics Corporation |
| Manufacturer Part Number | EZN1260/8 |
| Manufacturer Website Address | http://www.everfocus.com |
| Marketing Information | The EZN1260 is a 2 Megapixel small form-factor bullet IP camera providing 30fps at 1920 x 1080 viewing resolution. The camera supports quad streams from H.264 MPEG-4 and M-JPEG video compression formats. Equipped with weather resistance (IP66) housing and eight IR LEDs that enable night visibility for up to 20 meters the camera meets a wide variety of outdoor surveillance needs. The camera has a built-in micro SDHC card slot providing local recording when an event is triggered. Power over Ethernet (IEEE 802.3af) supplies power to the camera via the network for easy installation with only one cable. This eliminates the need for power cables and reduces installation costs. EZN1260 conforms to ONVIF / PSIA for compatibility with other network video devices including devices from other manufacturers. You can also use EverFocus mobile applications to remotely monitor the live views of the cameras through your handheld devices; or use EverFocus CMS to remotely manage multiple IP devices connected on the network. |
| Maximum Focal Length | 8 mm |
| Maximum frame rate | 30 fps |
| Maximum Power Consumption | 11.04 W |
| Maximum Video Resolution | 1920 x 1080 |
| Package Contents | - 2 Megapixel Full HD IR & WDR Network Camera
- 1 x Quick Mounting Ring
- 4 x Long Screws
- 4 x Screw Anchors
- 4 x Short Screw
- 1 x Hexagon Key
- 1 x Hexagon Wrench
- 1 x Cable Gland
- 1 x Test-Out Cable
- 1 x 4-Pin Terminal Block
- 1 x RJ-45 connector
- 1 x Power Pigtail Cable
- 1 x Desiccant Bag
- 1 x Software CD
- 1 x Quick Installation Guide
|
| Platform Supported | Android |
| Platform Supported | IOS |
| Product Family | NeVio EZN |
| Product Line | NeVio |
| Product Model | EZN1260 |
| Product Name | 2 Megapixel Full HD IR & WDR Network Camera |
| Product Series | EZN |
| Product Type | Network Camera |
| Protocols | ARP |
| Protocols | DHCP |
| Protocols | HTTP |
| Protocols | RTP |
| Protocols | RTSP |
| Protocols | IPv6 |
| Protocols | UDP |
| Protocols | NTP |
| Protocols | UPnP |
| Protocols | PSIA |
| Protocols | IGMP |
| Protocols | DDNS |
| Protocols | RTCP |
| Protocols | ONVIF |
| Protocols | ICMP |
| Protocols | SNMP |
| Protocols | TCP/IP |
| Protocols | SMTP |
| Protocols | PPPoE |
| Protocols | HTTPS |
| Protocols | FTP |
| Protocols | DNS |
| Protocols | Bonjour |
| Security features | - Password Protection
- IP Address Filtering
- HTTPS encryption
- SSL
|
| Shortest Shutter Speed | 1/15000 Second |
| UPC Alternates | 697101014038 |
| Video Formats | MPEG-4 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Signal Format | NTSC |
| Weight (Approximate) | 1.59 lb |
| White Balance Modes | AWB |
