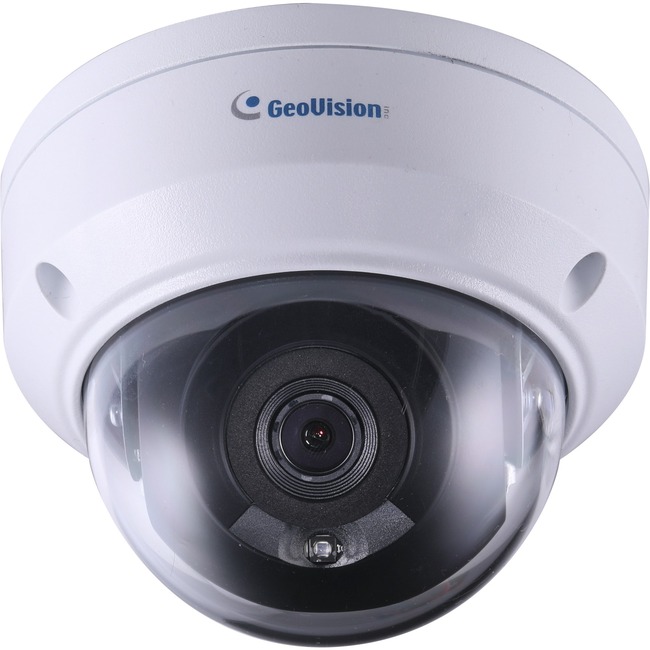

GeoVision GV-TDR4702-0F 4 Megapixel HD Network Camera - Mini Dome - 98.43 ft - H.264, H.265, MJPEG - 2592 x 1520 Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount
98.43 ft - H.264, H.265, MJPEG - 2592 x 1520 Fixed Lens - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount, Corner Mount, Pole Mount
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP67 |
| Minimum Operating Temperature | -22°F (-30°C) |
| Night Vision Distance | 98.43 ft |
| Number of IR LEDs | 1 |
| Operating Humidity | 90% |
| Brand Name | GeoVision |
| Color Supported | Color |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Diameter | 4.3" |
| Effective Camera Resolution | 4 Megapixel |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Mini Dome |
| Image Sensor Type | CMOS |
| Lens Type | Fixed |
| Manufacturer | GeoVision Inc |
| Manufacturer Part Number | GV-TDR4702-0F |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | The Mini Fixed Rugged IP Dome is an outdoor fixed network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards and can be powered through PoE. |
| Maximum Focal Length | 2.80 mm |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Video Resolution | 2592 x 1520 |
| Mount Type | Pendant Mount |
| Mount Type | Pole Mount |
| Mount Type | Wall Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Junction Box Mount |
| Mount Type | Corner Mount |
| Package Contents | - 4MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
- Warranty Card
|
| Product Name | 4MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome |
| Product Series | GV-TDR4702 |
| Product Type | Network Camera |
| Recording Formats | HD |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Weight (Approximate) | 12.35 oz |
