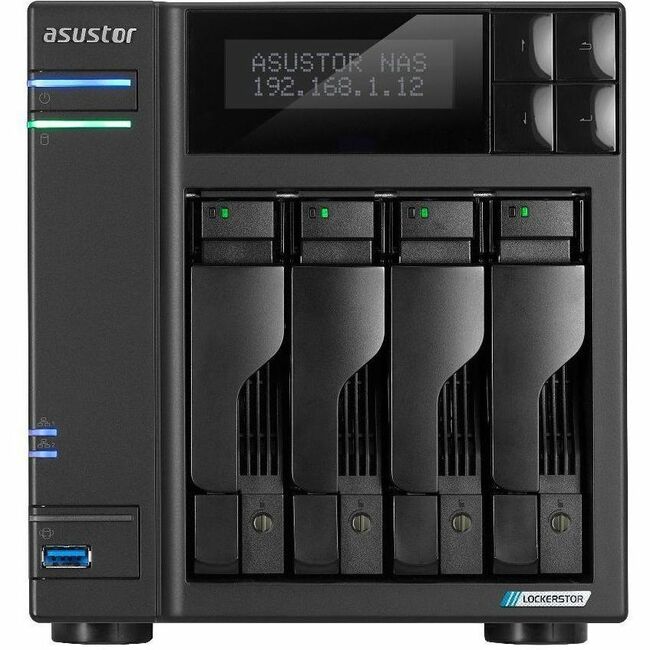

ASUSTOR Lockerstor 4 AS6704T SAN/NAS Storage System - Intel Celeron N5105 Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 4 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, JBOD - 4 x Total Bays - 4 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet - HDMI - 2 USB Port(s) - Network (RJ-45) - ADM 4.1 - IMAP, IPSec, TCP/IP, SMTP, HTTPS, LDAP, L2TP, SFTP, UDP, SSH,
Intel Celeron N5105 Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 4 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, JBOD - 4 x Total Bays - 4 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet - HDMI - 2 USB Port(s) - Network (RJ-45) - ADM 4.1 - IMAP, IPSec, TCP/IP, SMTP, HTTPS, LDAP, L2TP, SFTP, UDP, SSH, CHAP, ... - 8 GB Flash Memory Capacity - Desktop
| Maximum Power Supply Wattage | 90 W |
| Number of Hard Drives Installed | 0 |
| Processor Core | Quad-core (4 Core) |
| Controller Type | Serial ATA/600 |
| Depth | 9.1" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | Fast Ethernet |
| Expansion Slot Type | PCI Express |
| Flash Memory Capacity | 8 GB |
| Form factor | Desktop |
| Height | 7.3" |
| Limited Warranty | 3 Year |
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | AS6704T |
| Manufacturer Website Address | http://www.asustor.com |
| Marketing Information | The No-Compromises 2.5GbE NAS | LOCKERSTOR Gen2 Series
Enthusiast-grade NAS with two four or six bays The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel's Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance.
The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.
Unleashed Strength Uses powerful software tools to ensure data is safe and secure Unleashed Speed Uses faster hardware for more efficiency Unleashed Creativity Maximum creativity without computing constraints Unleashed Potential - Supports Premiere Pro & Final Cut Pro
- Easily collaborate with anyone anywhere.
- Adobe Creative Cloud data backup and version control
- Stream YouTube and/or Twitch videos with rebroadcasting and live recording functionality
CPU Intel's newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades. Keeping Cool With up to four SSDs a considerable amount of heat can be generated. With extra ventilation the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
USB 3.2 Gen 2x1 - A First for ASUSTOR The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps. Four M.2 Slots The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs. Tool-Free M.2 SSD Installation Uses latches instead of screws for easier installation. Also Supports 10-Gigabit Ethernet The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
|
| Memory Technology | DDR4 SDRAM |
| Number of Network (RJ-45) Ports | 2 |
| Number of Total Expansion Bays | 4 |
| Operating System | ADM 4.1 |
| Package Contents | - Lockerstor 4 AS6704T SAN/NAS Storage System
- Quick Installation Guide
- 1 x AC Power Cord
- 1 x AC Power Adapter
- 2 x RJ-45 LAN Cable(Cat 5e)
- 16 x Flat Head Screw (for 3.5" HDD)
- 16 x Flat Head Screw (for 2.5" HDD)
|
| Packaged Quantity | 1 |
| Processor Manufacturer | Intel |
| Processor model | N5105 |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| Product Line | Lockerstor 4 |
| Product Name | Lockerstor 4 AS6704T SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Protocols | POP3 |
| Protocols | SFTP |
| Protocols | WEBDAV |
| Protocols | UDP |
| Protocols | SMTP |
| Protocols | PPTP |
| Protocols | PAP |
| Protocols | HTTPS |
| Protocols | TLS |
| Protocols | TFTP |
| Protocols | RTSP |
| Protocols | IPv6 |
| Protocols | CHAP |
| Protocols | AFP |
| Protocols | SSH |
| Protocols | SNMP |
| Protocols | RSync |
| Protocols | iSCSI |
| Protocols | IPv4 |
| Protocols | SMB 2.0 |
| Protocols | HTTP |
| Protocols | UPnP |
| Protocols | NFS |
| Protocols | LDAP |
| Protocols | L2TP |
| Protocols | IPSec |
| Protocols | IMAP |
| Protocols | CIFS/SMB |
| Protocols | FTPS |
| Protocols | TCP/IP |
| Protocols | SSL |
| Protocols | SMB 3.0 |
| Protocols | FTP |
| Protocols | DDNS |
| RAID Levels | 0 1 5 6 10 JBOD |
| RAID Supported | Yes |
| Standard Memory | 4 GB |
| UPC Alternates | 887372901612 |
| Weight (Approximate) | 6.48 lb |
| Width | 6.7" |
