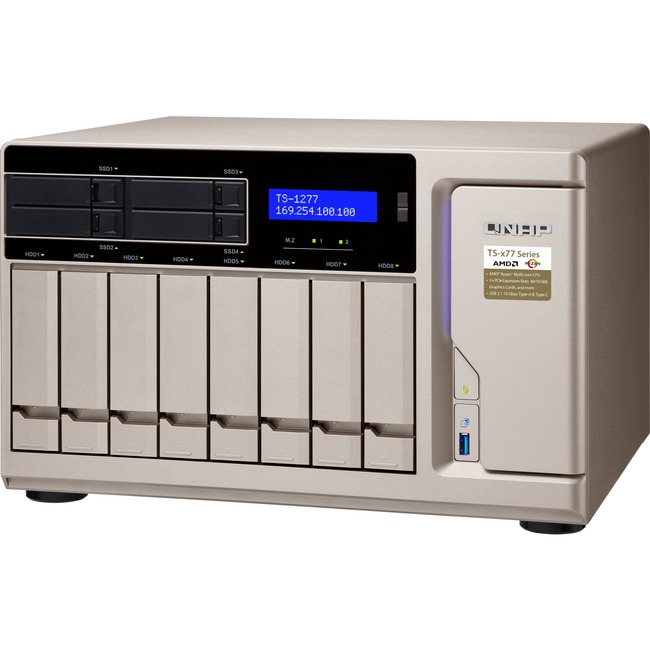

QNAP TS-1277 SAN/NAS Storage System - AMD Ryzen 7 1700 Octa-core (8 Core) 3 GHz - 12 x HDD Supported - 4 x SSD Supported - 64 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD - 12 x Total Bays - 8 x 3.5" Bay - 4 x 2.5" Bay - 3 x Total Slot(s) - Gigabit Ethernet - HDMI - 8 USB Port(s) - 6 USB 3.0 Port(s) - Network (RJ-45) - QTS 4.3 - DNS, Telnet, DLNA, IPv6, FTPS, WEBDAV, SSL/TLS, AFP, CIFS, HTTPS, FTP, ... - 512 MB Flash Memory Capacity
AMD Ryzen 7 1700 Octa-core (8 Core) 3 GHz - 12 x HDD Supported - 4 x SSD Supported - 64 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD - 12 x Total Bays - 8 x 3.5" Bay - 4 x 2.5" Bay - 3 x Total Slot(s) - Gigabit Ethernet - HDMI - 8 USB Port(s) - 6 USB 3.0 Port(s) - Network (RJ-45) - QTS 4.3 - DNS, Telnet, DLNA, IPv6, FTPS, WEBDAV, SSL/TLS, AFP, CIFS, HTTPS, FTP, ... - 512 MB Flash Memory Capacity - Tower
| Number of 3.5" Bays | 8 |
| Number of 3.5" Bays | 8 |
| Number of 3.5" Bays | 8 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Supported | 4 |
| Number of Total Expansion Slots | 3 |
| Number of Total Expansion Slots | 3 |
| Number of Total Expansion Slots | 3 |
| Processor Core | Octa-core (8 Core) |
| Processor Core | Octa-core (8 Core) |
| Processor Core | Octa-core (8 Core) |
| Brand Name | QNAP |
| Brand Name | QNAP |
| Brand Name | QNAP |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA/600 |
| Controller Type | Serial ATA/600 |
| Depth | 12.6" |
| Depth | 12.6" |
| Depth | 12.6" |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Flash Memory Capacity | 512 MB |
| Flash Memory Capacity | 512 MB |
| Flash Memory Capacity | 512 MB |
| Form factor | Tower |
| Form factor | Tower |
| Form factor | Tower |
| Height | 9.2" |
| Height | 9.2" |
| Height | 9.2" |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Manufacturer | QNAP Systems |
| Manufacturer | QNAP Systems |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-1277-1700-64G-US |
| Manufacturer Part Number | TS-1277-1700-64G-US |
| Manufacturer Part Number | TS-1277-1700-64G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Manufacturer Website Address | http://www.qnap.com |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | TS-1277 The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
The TS-1277 powered by AMD's new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-1277 the preeminent choice to tackle resource-demanding applications and tasks. Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance. PCIe expandability allows for 10GbE/40GbE adapters PCIe NVMe SSD graphics cards USB 3.1 10Gbps cards or wireless network cards. Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs. Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency. Scalable storage supporting virtualization containerized apps centralized storage backup sharing and disaster recovery. RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity protection and performance. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM the TS-1277 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 16 virtual machines simultaneously*. For resource-demanding business applications such as VDI R&D private cloud and server virtualization the TS-1277 with gold-standard performance is your ideal choice. Top-class hardware engineering The feature-packed hardware of the TS-1277 bolsters overall system performance. Coupled with the flexible and expandable architecture the TS-1277 fulfills diversified application needs. Extend NAS functionality with PCIe slots The TS-1277 features three PCIe slots (1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards QM2 M.2 SSD/10GbE PCIe cards or compatible wireless network cards for greater application potential. Fuel GPU-accelerated computing with a 550W power supply Graphics cards are optimized for graphical calculations and transformations but require significantly more power compared to other hardware. The TS-1277 offers PCIe slots to support AMD Radeon™ or NVIDIA® graphics cards and a 550 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-1277 you can use the remote control (RM-IR004 optional purchase) that supports QButton for a more convenient control of your multimedia experience. |
| Marketing Information | TS-1277 The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
The TS-1277 powered by AMD's new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-1277 the preeminent choice to tackle resource-demanding applications and tasks. Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance. PCIe expandability allows for 10GbE/40GbE adapters PCIe NVMe SSD graphics cards USB 3.1 10Gbps cards or wireless network cards. Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs. Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency. Scalable storage supporting virtualization containerized apps centralized storage backup sharing and disaster recovery. RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity protection and performance. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM the TS-1277 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 16 virtual machines simultaneously*. For resource-demanding business applications such as VDI R&D private cloud and server virtualization the TS-1277 with gold-standard performance is your ideal choice. Top-class hardware engineering The feature-packed hardware of the TS-1277 bolsters overall system performance. Coupled with the flexible and expandable architecture the TS-1277 fulfills diversified application needs. Extend NAS functionality with PCIe slots The TS-1277 features three PCIe slots (1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards QM2 M.2 SSD/10GbE PCIe cards or compatible wireless network cards for greater application potential. Fuel GPU-accelerated computing with a 550W power supply Graphics cards are optimized for graphical calculations and transformations but require significantly more power compared to other hardware. The TS-1277 offers PCIe slots to support AMD Radeon™ or NVIDIA® graphics cards and a 550 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-1277 you can use the remote control (RM-IR004 optional purchase) that supports QButton for a more convenient control of your multimedia experience. |
| Marketing Information | TS-1277 The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
The TS-1277 powered by AMD's new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-1277 the preeminent choice to tackle resource-demanding applications and tasks. Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance. PCIe expandability allows for 10GbE/40GbE adapters PCIe NVMe SSD graphics cards USB 3.1 10Gbps cards or wireless network cards. Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs. Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency. Scalable storage supporting virtualization containerized apps centralized storage backup sharing and disaster recovery. RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity protection and performance. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM the TS-1277 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 16 virtual machines simultaneously*. For resource-demanding business applications such as VDI R&D private cloud and server virtualization the TS-1277 with gold-standard performance is your ideal choice. Top-class hardware engineering The feature-packed hardware of the TS-1277 bolsters overall system performance. Coupled with the flexible and expandable architecture the TS-1277 fulfills diversified application needs. Extend NAS functionality with PCIe slots The TS-1277 features three PCIe slots (1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards QM2 M.2 SSD/10GbE PCIe cards or compatible wireless network cards for greater application potential. Fuel GPU-accelerated computing with a 550W power supply Graphics cards are optimized for graphical calculations and transformations but require significantly more power compared to other hardware. The TS-1277 offers PCIe slots to support AMD Radeon™ or NVIDIA® graphics cards and a 550 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-1277 you can use the remote control (RM-IR004 optional purchase) that supports QButton for a more convenient control of your multimedia experience. |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 12 |
| Number of Total Expansion Bays | 12 |
| Number of Total Expansion Bays | 12 |
| Number of USB 3.0 Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| Operating System | QTS 4.3 |
| Operating System | QTS 4.3 |
| Operating System | QTS 4.3 |
| Package Contents | - TS-1277 SAN/NAS Storage System
- 2 x Ethernet Cables
- Quick Installation Guide (QIG)
- Flat Head Screws (For 2.5" HDD)
- Flat Head Screw (For M.2 SSD)
- 1 x Power Cord
- 2 x M.2 SSD Cooling Module
|
| Package Contents | - TS-1277 SAN/NAS Storage System
- 2 x Ethernet Cables
- Quick Installation Guide (QIG)
- Flat Head Screws (For 2.5" HDD)
- Flat Head Screw (For M.2 SSD)
- 1 x Power Cord
- 2 x M.2 SSD Cooling Module
|
| Package Contents | - TS-1277 SAN/NAS Storage System
- 2 x Ethernet Cables
- Quick Installation Guide (QIG)
- Flat Head Screws (For 2.5" HDD)
- Flat Head Screw (For M.2 SSD)
- 1 x Power Cord
- 2 x M.2 SSD Cooling Module
|
| Processor Manufacturer | AMD |
| Processor Manufacturer | AMD |
| Processor Manufacturer | AMD |
| Processor model | 1700 |
| Processor model | 1700 |
| Processor model | 1700 |
| Processor Speed | 3 GHz |
| Processor Speed | 3 GHz |
| Processor Speed | 3 GHz |
| Processor Type | Ryzen 7 |
| Processor Type | Ryzen 7 |
| Processor Type | Ryzen 7 |
| Product Model | TS-1277 |
| Product Model | TS-1277 |
| Product Model | TS-1277 |
| Product Name | TS-1277 SAN/NAS Storage System |
| Product Name | TS-1277 SAN/NAS Storage System |
| Product Name | TS-1277 SAN/NAS Storage System |
| Product Series | TS-x77 |
| Product Series | TS-x77 |
| Product Series | TS-x77 |
| Product Type | SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Protocols | DNS |
| Protocols | HTTPS |
| Protocols | FXP |
| Protocols | PPTP |
| Protocols | HTTP |
| Protocols | DHCP |
| Protocols | iSCSI |
| Protocols | UPnP |
| Protocols | TCP/IP |
