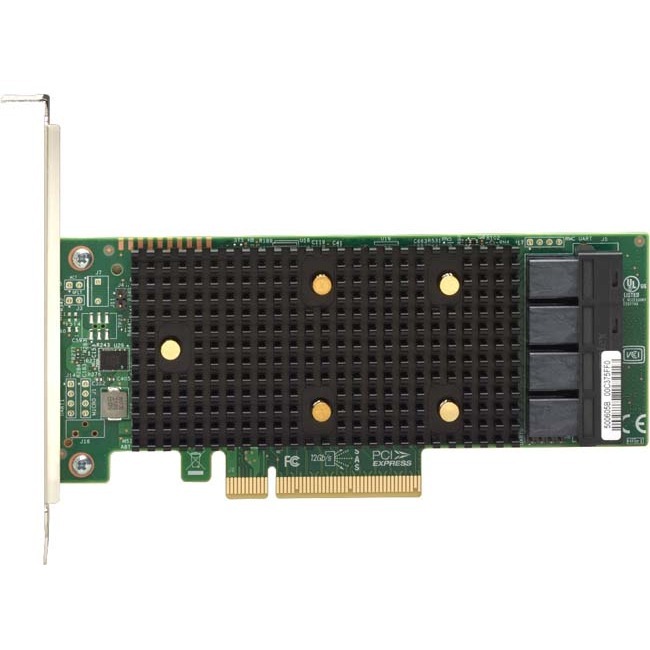

Lenovo ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit - Serial ATA, 12Gb/s SAS - PCI Express 3.0 x8 - Full-height/Low-profile - Plug-in Card - JBOD RAID Level - 2x Mini-SAS HD x4 (SFF-8643) - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC
Serial ATA, 12Gb/s SAS - PCI Express 3.0 x8 - Full-height/Low-profile - Plug-in Card - JBOD RAID Level - 2x Mini-SAS HD x4 (SFF-8643) - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - PC
| SAS Connector Details | 2x Mini-SAS HD x4 (SFF-8643) |
| SAS Connector Details | 2x Mini-SAS HD x4 (SFF-8643) |
| Total Number of SAS Ports | 8 |
| Total Number of SAS Ports | 8 |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Card Height | Full-height/Low-profile |
| Card Height | Full-height/Low-profile |
| Compatibility | ThinkSystem SD530 Servers |
| Compatibility | ThinkSystem SD530 Servers |
| Controller Type | Serial ATA |
| Controller Type | 12Gb/s SAS |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| Device Supported | Server |
| Device Supported | Server |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Plug-in Card |
| Form factor | Plug-in Card |
| Host interface | PCI Express 3.0 x8 |
| Host interface | PCI Express 3.0 x8 |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4C57A16217 |
| Manufacturer Part Number | 4C57A16217 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS. |
| Marketing Information | The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS. |
| Package Contents | - ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit
- Documentation Flyer
- SAS Cables for use in the SD530
|
| Package Contents | - ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit
- Documentation Flyer
- SAS Cables for use in the SD530
|
| Platform Supported | PC |
| Platform Supported | PC |
| Product Model | 430-8i |
| Product Model | 430-8i |
| Product Name | ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit |
| Product Name | ThinkSystem SD530 430-8i SAS/SATA 12Gb Dense HBA Kit |
| Product Type | SAS Controller |
| Product Type | SAS Controller |
| RAID Levels | JBOD |
| RAID Levels | JBOD |
| RAID Supported | No |
| RAID Supported | No |
| UPC Alternates | 889488478699 |
| UPC Alternates | 889488478699 |
