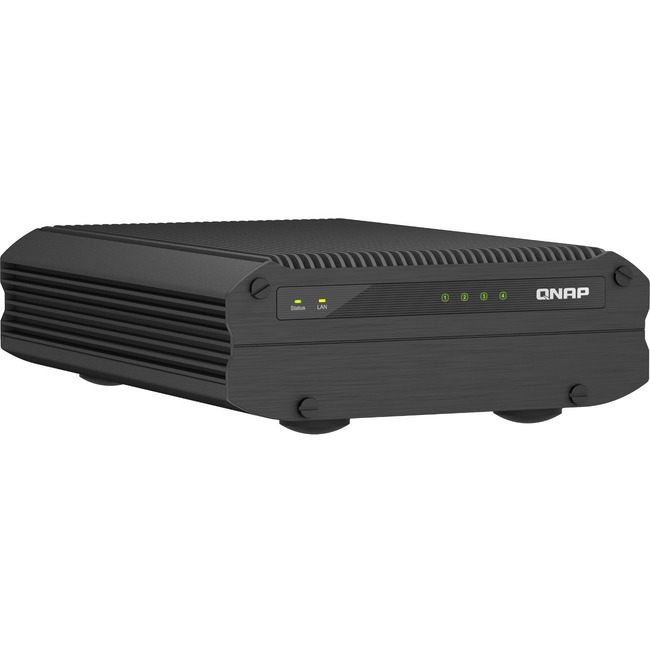

QNAP TS-I410X-8G SAN/NAS Storage System - Intel Atom x6425E Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 4 x SSD Supported - 8 GB RAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, JBOD - 4 x Total Bays - 4 x 2.5" Bay - 10 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - QTS 5.0.0 - TFTP, SFTP, FTP, FXP, AFP, CIFS/SMB, SSH, Telnet, HTTP, TLS, NFS, ... - 4 GB Flash Memory Capacity - Tower
Intel Atom x6425E Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 4 x SSD Supported - 8 GB RAM - Serial ATA/600 Controller - RAID Supported 0, 1, 5, 6, 10, 50, 60, JBOD - 4 x Total Bays - 4 x 2.5" Bay - 10 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - QTS 5.0.0 - TFTP, SFTP, FTP, FXP, AFP, CIFS/SMB, SSH, Telnet, HTTP, TLS, NFS, ... - 4 GB Flash Memory Capacity - Tower
| Maximum Power Supply Wattage | 90 W |
| Number of Hard Drives Installed | No |
| Processor Core | Quad-core (4 Core) |
| Additional Warranty Information | The TS-i410X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years. |
| Brand Name | QNAP |
| Controller Type | Serial ATA/600 |
| Depth | 10" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Flash Memory Capacity | 4 GB |
| Form factor | Tower |
| Height | 2.6" |
| Limited Warranty | 3 Year |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-I410X-8G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Marketing Information | With a fanless design and rock-solid chassis the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories warehouses transportation and other rugged operating environments. - 10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks high speed backup/recovery file sharing and video transmission. - 4K HDMI output
Supports 4K playback and real-time transcoding. - Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance. - Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices. - Data backup and recovery
Protect PC/Macs virtual machines software containers and cloud data. - Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS. Available Models | TS-i410X-8G Quad cores up to 3.0 GHz with AES-NI accelerated encryption The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications. Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements. Use with industrial wide temperature SSDs When using industrial wide temperature SSDs adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs) |
| Number of Network (RJ-45) Ports | 2 |
| Number of Total Expansion Bays | 4 |
| Operating System | QTS 5.0.0 |
| Package Contents | - TS-I410X-8G SAN/NAS Storage System
- 1 x 10GBASE-T Ethernet Cable
- 1 x Power Cord
- 16 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
- AC Adapter
|
| Processor Manufacturer | Intel |
| Processor model | x6425E |
| Processor Speed | 2 GHz |
| Processor Type | Atom |
| Product Model | TS-I410X-8G |
| Product Name | TS-I410X-8G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Protocols | NFSv4 |
| Protocols | NFS |
| Protocols | CIFS/SMB |
| Protocols | AFP |
| Protocols | iSCSI |
| Protocols | SNMP |
| Protocols | TLS |
| Protocols | TFTP |
| Protocols | HTTP |
| Protocols | Telnet |
| Protocols | SNMPv3 |
| Protocols | FXP |
| Protocols | HTTPS |
| Protocols | DHCP |
| Protocols | FTP |
| Protocols | SNMPv2 |
| Protocols | DDNS |
| Protocols | WEBDAV |
| Protocols | SSH |
| Protocols | SFTP |
| Protocols | NFSv3 |
| Protocols | LDAP |
| RAID Levels | 0 1 5 6 10 50 60 JBOD |
| RAID Supported | Yes |
| Standard Memory | 8 GB |
| UPC Alternates | 885022023813 |
| Weight (Approximate) | 5.60 lb |
| Width | 7.1" |
