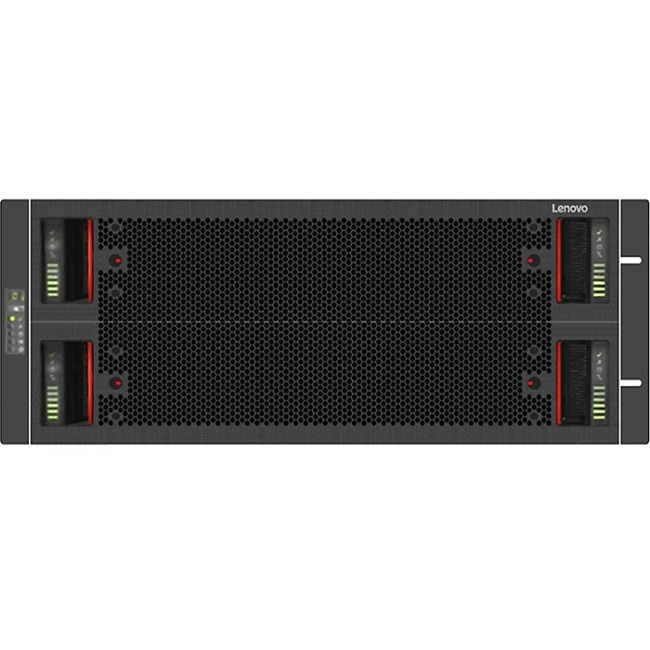

Lenovo D3284 Drive Enclosure - 12Gb/s SAS Host Interface - 5U Rack-mountable
| $17,288.14 Retail $24,499.00 |
- Versatile, scalable storage expansion with dual Environmental Service Module (ESM) configurations for high availability and performance
- Flexibility in storing data on high performance SAS SSDs or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types on a single HBA to perfectly meet performance and capacity requirements for various workloads
- Flexible host connectivity to match diverse client needs for direct attach storage with support for 12 Gb SAS Host Bus Adapters (HBAs) for maximum JBOD performance
- 12 Gb SAS drive-side connectivity and storage density with support for 84x 3.5-inch large form factor (LFF) drives in a 5U rack space
- Scalability of up to 336 drives per HBA with the attachment of up to four D3284 daisy-chained expansion enclosures to satisfy growing needs for storage capacity and performance
- Support multiple host attachments (application-specific
- Flexibility in daisy chaining of up to t
84 x HDD Supported - 84 x Total Bay - 84 x 3.5" Bay
Product Specifications
| Non-RAID Mode | JBOD |
| Non-RAID Mode | JBOD |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Installed | No |
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Depth | 36.7" |
| Depth | 36.7" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Height | 8.7" |
| Height | 8.7" |
| Host interface | 12Gb/s SAS |
| Host interface | 12Gb/s SAS |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 6413E5F |
| Manufacturer Part Number | 6413E5F |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Abstract The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U and JBOD (non-RAID) host connectivity. This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering its key features and specifications components and options and configuration guidelines. This guide is intended for technical specialists sales specialists sales engineers IT architects and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions. Introduction The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U rack space and JBOD (non-RAID) host connectivity. The D3284 expansion unit is designed for a wide range of workloads including big data and analytics video surveillance private and hybrid clouds file and print serving and backup and archiving. The D3284 is also well-suited for software defined storage (SDS) and Windows Storage Spaces. Introduction The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U rack space and JBOD (non-RAID) host connectivity. The D3284 expansion unit is designed for a wide range of workloads including big data and analytics video surveillance private and hybrid clouds file and print serving and backup and archiving. The D3284 is also well-suited for software defined storage (SDS) and Windows Storage Spaces. |
| Marketing Information | Abstract The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U and JBOD (non-RAID) host connectivity. This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering its key features and specifications components and options and configuration guidelines. This guide is intended for technical specialists sales specialists sales engineers IT architects and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions. Introduction The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U rack space and JBOD (non-RAID) host connectivity. The D3284 expansion unit is designed for a wide range of workloads including big data and analytics video surveillance private and hybrid clouds file and print serving and backup and archiving. The D3284 is also well-suited for software defined storage (SDS) and Windows Storage Spaces. Introduction The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density speed scalability security and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U rack space and JBOD (non-RAID) host connectivity. The D3284 expansion unit is designed for a wide range of workloads including big data and analytics video surveillance private and hybrid clouds file and print serving and backup and archiving. The D3284 is also well-suited for software defined storage (SDS) and Windows Storage Spaces. |
| Number of Total Expansion Bays | 84 |
| Number of Total Expansion Bays | 84 |
| Package Contents |
|
| Package Contents |
|
| Product Model | D3284 |
| Product Model | D3284 |
| Product Name | D3284 High Density Expansion Enclosure |
| Product Name | D3284 High Density Expansion Enclosure |
| Product Type | Drive Enclosure |
| Product Type | Drive Enclosure |
| Rack Height | 5U |
| Rack Height | 5U |
| UPC Alternates | 889488482832 |
| UPC Alternates | 889488482832 |
| Width | 17.6" |
| Width | 17.6" |
