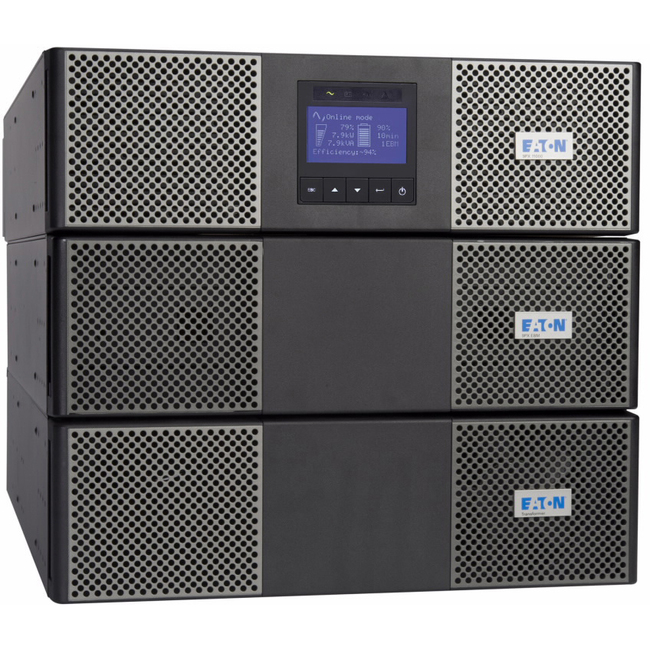

Eaton 9PX UPS 11 kVA 10 kW 208V Network Card Included 9U Rack/Tower UPS - 9U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 230 V AC, 240 V AC, 250 V AC, 120 V AC, 220 V AC Output - 2 x NEMA L14-30R, 8 x NEMA 5-20R
9U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 230 V AC, 240 V AC, 250 V AC, 120 V AC, 220 V AC Output - 2 x NEMA L14-30R, 8 x NEMA 5-20R
| Bypass Switch | Optional |
| Output Frequency | 60 Hz |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Detail | 2 x NEMA L14-30R |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Brand Name | Eaton |
| Depth | 28" |
| Emergency Power OFF | Yes |
| Environmental Certification | RoHS |
| Form factor | Rack/Tower |
| Height | 15.3" |
| Input frequency | 70 Hz |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 11000 VA |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX11KTF11 |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | The Eaton 9PX is a proven best-in-class online UPS featuring ABM technology which extends battery service life up to 50 percent. With double-conversion topology for constant power conditioning and battery packs for extended runtime the 9PX tower/rackmount UPS is built for scalable deployment and features a graphical LCD interface. Select 9PX UPS models are bundled with the Eaton Gigabit Network card the first in the industry to comply with both UL and IEC cybersecurity standards. To complete your backup power solution pair your 9PX with the Eaton Intelligence Platform for seamless management of your connected equipment.
Applications: IT edge networks medical/healthcare universities K-12 industrial automation harsh electrical environments |
| Network Management | SNMP Manageable |
| Output voltage | 200 V AC |
| Output voltage | 250 V AC |
| Output voltage | 208 V AC |
| Output voltage | 120 V AC |
| Output voltage | 230 V AC |
| Output voltage | 240 V AC |
| Package Contents | - 9PX 11kVA Tower/Rack Mountable UPS
- 9PXTFMR11 11K 120V Stepdown Transformer
- 9PXEBM240RT 3U Extended Battery Module
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland for Hardwire Conection
- Phillips Head Screw Driver
|
| Plug/Connector Type | Hardwired |
| Product Name | 9PX UPS |
| Product Series | 9PX |
| Product Type | Dual Conversion Online UPS |
| Rack Height | 9U |
| Receptacle Type | NEMA 5-20R |
| Receptacle Type | NEMA L14-30R |
| Software Included | Eaton Intelligent Power Software |
| Transfer Time | 0 ns |
| UPC Alternates | 743172039873 |
| Weight (Approximate) | 376.99 lb |
| Width | 17" |
