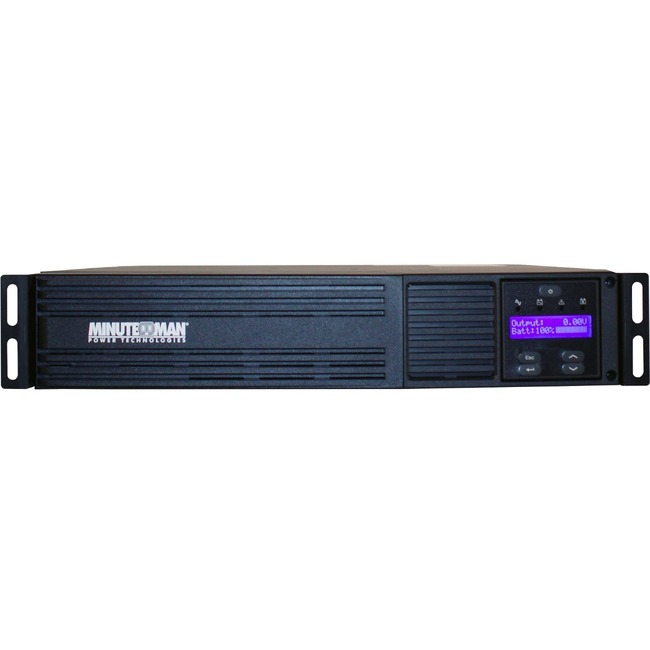

Minuteman EXR Series Line Interactive Uninterruptible Power Supply
| $768.02 Retail $815.00 |
- Works adequately in situations where the supply is prone to sags and surges
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
2U Tower/Rack/Wall Mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC, 208 V AC Output - 8 x NEMA 5-15R
Product Specifications
| Load Capacity (VA) | 1000 VA |
| Load Capacity (W) | 900 W |
| Maximum Operating Elevation | 9842.52 ft |
| Operating Humidity | 0% - 95% |
| Phase | Single Phase |
| Receptacle Detail | 8 x NEMA 5-15R |
| Waveform Type | True Sine Wave |
| Application/Usage | Mission Critical Equipment |
| Application/Usage | Network Closet |
| Application/Usage | Security System |
| Application/Usage | Network |
| Application/Usage | Data Center |
| Application/Usage | Education |
| Application/Usage | Electronic Equipment |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Brand Name | Minuteman |
| Country of origin | China |
| Dataline Protection | RJ-45 |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS 2 |
| Form factor | Tower/Rack/Wall Mountable |
| Height | 3.5" |
| Hot Swappable | Yes |
| Input frequency | 60 Hz |
| Input voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 164 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 1000 VA/900 W |
| Manufacturer | Para Systems Inc |
| Manufacturer Part Number | EXR1000RT2U |
| Manufacturer Website Address | http://www.minutemanups.com |
| Marketing Information | Backup Versatility Redefined: Line Interactive Technology with True-sinewave output The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency auto-recognition of external battery packs for a smarter extended run-time solution tool-less battery connection and replacement and so much more! The EXR Series UPSs offer complete protection from all electrical problems including spikes surges sags brownouts and blackouts in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment. EXR® Key Features Key Features Include:
Front LCD Panel The NEW Alphanumeric LCD Dot-Matrix EXR Series Display Provides more detailed information about the UPS status than the previous LCD display including:
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS. |
| Maximum Operating Temperature | 104°F (40°C) |
| Network Management | SNMP |
| Output voltage | 208 V AC |
| Plug/Connector Type | NEMA 5-15P |
| Product Name | EXR Series Line Interactive Uninterruptible Power Supply |
| Product Series | EXR |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | NEMA 5-15R |
| Software Included | Minuteman SentryHD |
| Status Indicators | Front LCD Panel:
|
| Surge energy rating | 1000 J |
| Weight (Approximate) | 41.70 lb |
| Width | 19" |
