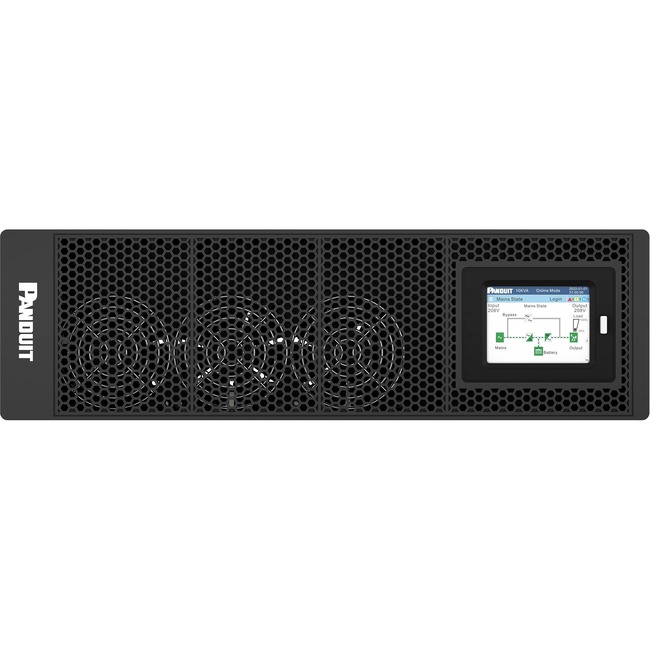

Panduit SmartZone U05N11V 5000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R
2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R
| Backup/Run Time With External Battery Cabinet (Full Load) | 14.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 37.10 Minute |
| DC System Voltage | 240 V DC |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (W) | 5000 W |
| Maximum Operating Elevation | 9842.52 ft |
| Output Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Detail | 4 x NEMA L6-30R |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | - 3 Years for UPS & EBP
- 2 Years for Battery
|
| Application/Usage | Edge Computing |
| Application/Usage | IT Equipment |
| Application/Usage | Data Center |
| Application/Usage | Computer |
| Battery capacity | 9000 mAh |
| Battery Characteristics | Valve-regulated Maintenance-free Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery life | 5 Year |
| Battery Size | 12V |
| Brand Name | Panduit |
| Dataline Protection | RJ-45 |
| Depth | 26.2" |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | ENERGY STAR 2.0 |
| Form factor | Rail Mountable |
| Form factor | Rack/Tower |
| Height | 5.2" |
| Hot Swappable | Yes |
| Input frequency | 70 Hz |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input Voltage Range | 110 V AC - 285 V AC |
| Input Voltage Range | 185 V AC - 264 V AC |
| Limited Warranty | 3 Year |
| Load Capacity | 5000 VA/5000 W |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U05N11V |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | The Panduit® SmartZone™ UPS with maintenance free VRLA battery 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT Infrastructure. |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 20 |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Package Contents | - SmartZone U05N11V 5000VA Rack/Tower UPS
- Intelligent Network Management Card
|
| Plug/Connector Type | NEMA L6-30R |
| Product color | Black |
| Product Line | SmartZone |
| Product Name | SmartZone U05N11V 5000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Rack Height | 2U |
| Software Included | SmartZone Cloud Ready |
| Sound Emission | 55 dB |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Surge energy rating | 600 J |
| Thermal Dissipation | 312.71 W |
| Transfer Time | 0 ns |
| Typical Battery Recharge Time | 6 Hour |
| Weight (Approximate) | 187.39 lb |
| Width | 17.3" |
